Blickle Swivel Plate Cstr, TPR Rubber, 4", Brake LE-TPA 102G-FI - main

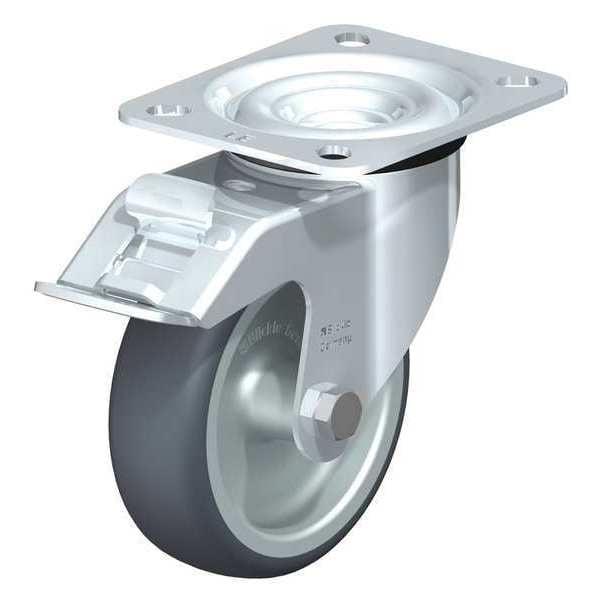

Swivel Plate Cstr, TPR Rubber, 4", Brake

  • Mfr # LE-TPA 102G-FI

  • Zoro # G9662138

product price: $25.29
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Metric
Wheel/Tread Material
Thermoplastic Rubber
Caster Brake Type
Stop Fix Brake (Total Lock)
Wheel Dia.
100 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LE-TPA 102G-FI
Zoro #
G9662138
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
100 mm
Wheel Width
32 mm
Mounting Plate Size
85 mm x 100 mm
Mounting Plate Thickness
2.5 mm
Mounting Bolt Dia.
M8
Swivel Radius
86 mm
Overall Height
125 mm

Details

Item
Swivel Caster With Brake
Caster Sub-Type
Swivel
System of Measurement
Metric
Wheel/Tread Material
Thermoplastic Rubber
Caster Brake Type
Stop Fix Brake (Total Lock)
Caster Mounting Type
Plate
Wheel Bearing Type
Plain
Wheel Hardness Rating
85 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Gray
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
60 mm x 80 mm
Inside Bolt Hole Spacing
60 mm x 80 mm
Replacement Wheel
Mfr. No. TPA 102/12G
Standards
RoHS, ICWM
Caster Brake Included
Yes
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Frame Finish
Zinc Plated
Includes
Stop-Fix Total-Lock Brake
Extended Lead
No
Resistant To
Very High Chemical Resistance To Many Aggressive Substances
Swivel Raceway Type
Double Ball
Tread Color
Gray
Accessories
Optional: RI-04.14 (Directional Lock)
Load Rating Range
Medium Duty
Tread
Standard
Includes Thread Guards
No
ESD Conductive
No
Wheel Core Material
Polypropylene
Series
LE Series
Load Capacity
110 kg
Operating Temperature Range
-20 Degrees To 60 Degrees C

Description

Swivel With Brake
