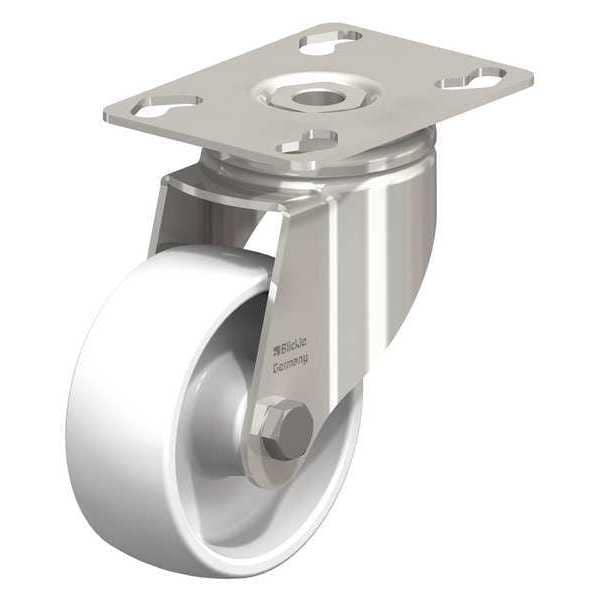

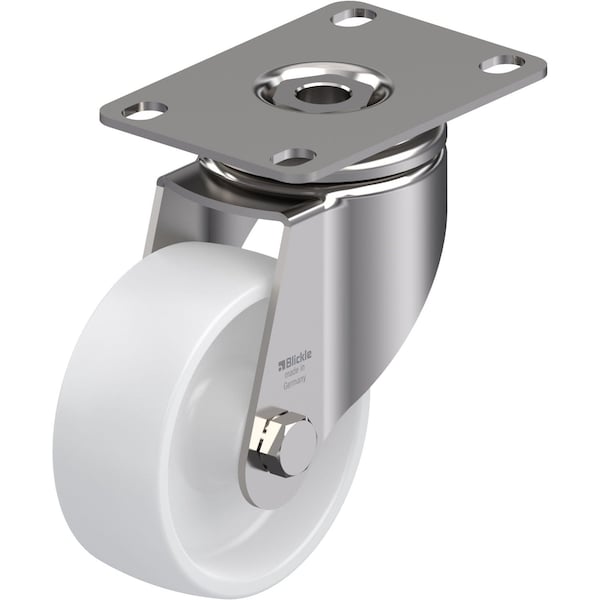

Blickle Swivel Plate Cstr, Wt Nyln, 3-1/8", 265 lb. LKPXA-PO 80G-12 - main

Swivel Plate Cstr, Wt Nyln, 3-1/8", 265 lb.

  • Mfr # LKPXA-PO 80G-12

  • Zoro # G0889222

product price:  $42.75
/ea

Key Features

Load Rating
265 lb
Caster Brake Included
No
Stem Dia.
No Stem
Caster Stem Type
No Stem/Plate Included
Wheel Width
1-1/4in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
LKPXA-PO 80G-12
Zoro #
G0889222
UPC #
-
Country of Origin
Germany

Dimensions

Stem Dia.
No Stem
Wheel Dia.
3-1/8in
Wheel Width
1-1/4in
Overall Height
4.37in
Mounting Bolt Dia.
5/16 in
Swivel Radius
3-1/8 in
Mounting Plate Size
2-1/2 in x 3-5/8 in
Mounting Plate Thickness
0.089 in

Details

Load Rating
265 lb
Caster Brake Included
No
Caster Stem Type
No Stem/Plate Included
Caster Sub-Type
Swivel
Number of Wheels
1
Item
Swivel Caster
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Replacement Wheel
Mfr. No. PO 80/12G
Application
Retail, Industrial, Commercial, Corrosion Resistance
Frame Finish
Stainless Steel
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
System of Measurement
Inch
Caster Mounting Type
Plate
Tread
Standard
Standards
RoHS, ICWM, NSF
Tread Color
White
Non-Marking
Yes
Caster Brake Type
No Brake Included
Core Color
White
Caster Frame Material
Stainless Steel
Extended Lead
No
ESD Conductive
No
Includes Thread Guards
No
Load Rating Range
Light-Duty
Number of Mounting Holes
4
Series
LKPXA Series
Wheel Core Material
Nylon
Tread Shape
Standard
Resistant To
High Chemical Resistance To Many Aggressive Substances
Swivel Raceway Type
Double Ball
Load Capacity
265 lb
Wheel Bearing Type
Plain
Wheel/Tread Material
Nylon
Wheel Hardness Rating
70 Shore D
Operating Temperature Range
-15 Degrees To 175 Degrees F

Description

Swivel
