  11. Swvl Plate Caster, Poly, 2-3/8", 705 lb.

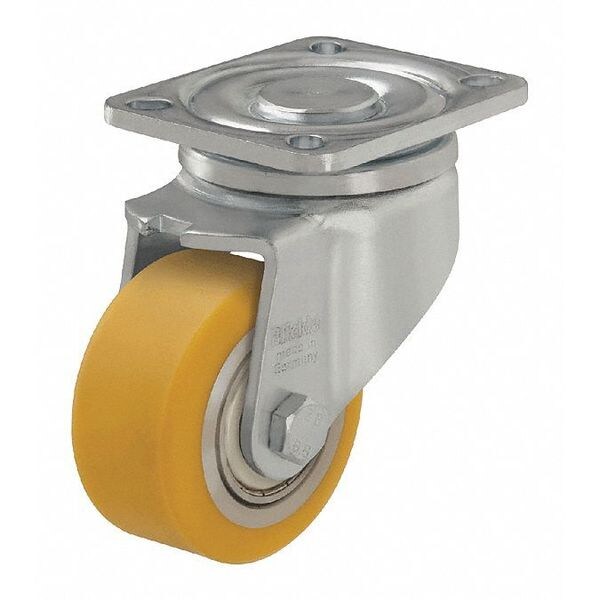

Blickle Swvl Plate Caster, Poly, 2-3/8", 705 lb. LH-VSTH 62K - main

Swvl Plate Caster, Poly, 2-3/8", 705 lb.

  • Mfr # LH-VSTH 62K

  • Zoro # G9663151

product price: $123.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
System of Measurement
Metric
Wheel/Tread Material
Extrathane Polyurethane
Caster Brake Type
No Brake Included
Wheel Dia.
60 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LH-VSTH 62K
Zoro #
G9663151
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
60 mm
Wheel Width
60 mm
Mounting Plate Size
85 mm x 100 mm
Mounting Plate Thickness
6 mm
Mounting Bolt Dia.
M8
Overall Height
92 mm
Swivel Radius
75 mm

Details

Item
Swivel Caster
Caster Sub-Type
Swivel
System of Measurement
Metric
Wheel/Tread Material
Extrathane Polyurethane
Caster Brake Type
No Brake Included
Caster Mounting Type
Plate
Wheel Bearing Type
Precision Ball
Wheel Hardness Rating
92 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Silver
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
60 mm x 80 mm
Inside Bolt Hole Spacing
60 mm x 80 mm
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Replacement Wheel
Mfr. No. VSTH 62/10K
Caster Brake Included
No
Frame Finish
Zinc Plated
Extended Lead
No
Standards
RoHS, ICWM
Series
LH Series
Swivel Raceway Type
Double Ball
Tread
Standard
Wheel Core Material
Steel
Load Capacity
320 kg
Resistant To
High Chemical Resistance To Many Aggressive Substances
Includes Thread Guards
No
Load Rating Range
Heavy Duty
ESD Conductive
No
Tread Color
Light Brown
Accessories
Optional: RI-04.01 (Directional Lock)
Operating Temperature Range
-25 Degrees To 70 Degrees C

Description

Swivel
