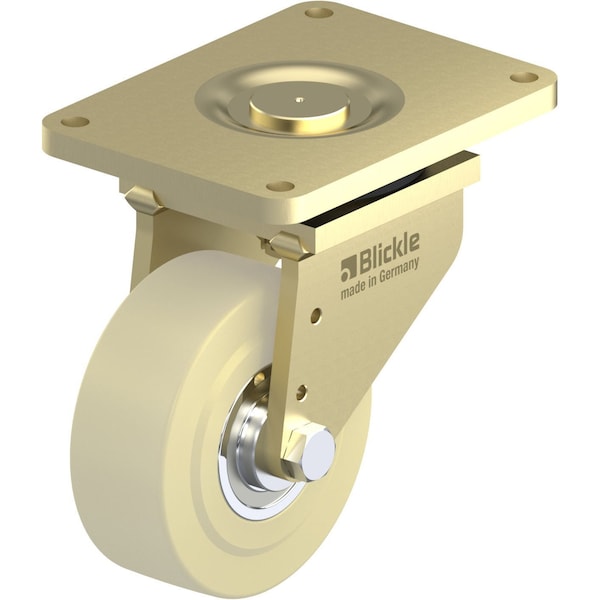

Swvl Plt Cstr, Nyln, 11-13/16", 22000 lb.

Name: Swvl Plt Cstr, Nyln, 11-13/16", 22000 lb.
Brand: Blickle
SKU: G9663809
Price: 5068.99 USD
Availability: InStock

5,068.99

/ea

Additional $100.00 delivery surcharge applies per item.

Caster Sub-Type

Swivel

System of Measurement

Metric

Wheel/Tread Material

Extra Heavy Duty Cast Nylon

Caster Brake Type

No Brake Included

Wheel Width

110 mm

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Get 10% off your order

Specifications

Caster Sub-Type: Swivel
System of Measurement: Metric
Wheel/Tread Material: Extra Heavy Duty Cast Nylon
Caster Brake Type: No Brake Included
Caster Mounting Type: Plate
Wheel Bearing Type: Precision Ball
Wheel Hardness Rating: 80 Shore D
Number of Mounting Holes: 4
Tread Shape: Standard
Caster Frame Material: Steel
Core Color: White
Non-Marking: Yes
Number of Wheels: 1
Outside Bolt Hole Spacing: 240 mm x 340 mm
Inside Bolt Hole Spacing: 240 mm x 340 mm
Item: Swivel
Application: Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Replacement Wheel: Mfr. No. GSPO 302/70K
Standards: RoHS, ICWM
Caster Brake Included: No
Extended Lead: No
Frame Finish: Zinc Plated, Yellow Passivated
Includes Thread Guards: No
ESD Conductive: No
Tread: Standard
Load Rating Range: Extra-Heavy Duty
Series: LS Series
Tread Color: Natural Beige
Swivel Raceway Type: Single Ball/Tapered Roller Bearing
Load Capacity: 10000 kg
Wheel Core Material: Nylon
Resistant To: High Chemical Resistance To Many Aggressive Substances
Operating Temperature Range: -25 Degrees To 80 Degrees C

Swivel
