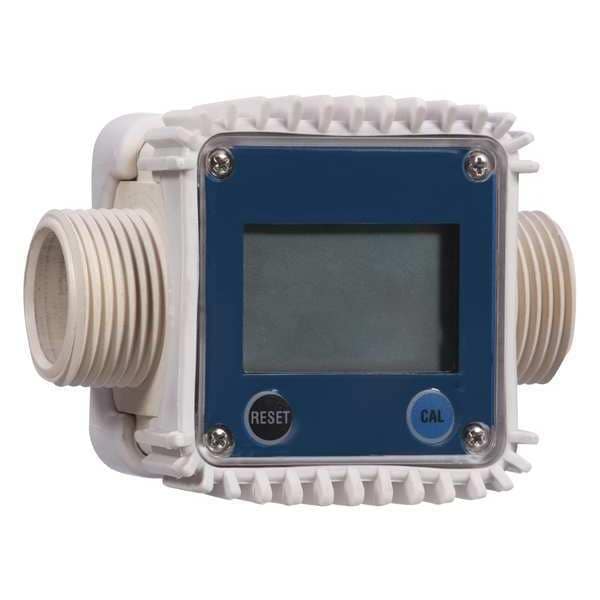

Flowmeter, Turbine, LCD, 4 to 15 gpm

  • Mfr # DEFFM
  • Zoro # G3780187
product price:
$
278.99
/ea
Free Shipping & Returns

Key Features

Type
Turbine
Housing Material
Polypropylene
For Pipe Size
1 in Stainless Steel Tube
Connection Size
1 in
Connection Type
Hose
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
DEFFM
Zoro #
G3780187
UPC #
855365004053
Country of Origin
Czechia

Dimensions

For Pipe Size
1 in Stainless Steel Tube
Connection Size
1 in
Fitting Size (In.)
3/4

Details

Item
Electronic Flowmeter
Type
Turbine
Housing Material
Polypropylene
Connection Type
Hose
Max. Pressure
25 psi
Wetted Materials
EPDM
Flow Range
1 to 15 LPM
Standards
ISO 22241
Display Type
Digital
Special Features
Totalizer
Display Units
gal/L
Fluid Temp. Range (Deg. C)
13 to 80
Sensor Type
Turbine
Pressure Rating (PSI)
25
Ambient Temperature
13 Degrees to 120 Degrees F
Flow Range (GPM)
4 to 15
Repeatability
+/- 0.03% of Reading
Accuracy (%)
+/-3
Power Requirement
2 Lithium Batteries
O-Ring
EPDM
Includes
Batteries
Seal Material
Viton
O-Ring Material
Viton
Flowmeter Type
Turbine
Flow Rate - Maximum
26 gpm
Wetted Material
EPDM
Includes Totalizer
No
Includes Flow Rate Adjustment Knob
Yes
Mounting Orientation
Universal
Voltage - Maximum
Battery Backup
Media Temperature - Maximum
122 Degrees F
Product Type
DEF Meter
Compatible Flow Material
DEF
Media Temperature - Minimum
14 Degrees F
Accuracy
+/-5%
Includes Pressure Gauge
No
Operating Pressure - Maximum
145 psi
Flow Rate - Minimum
1 gpm
Unit Of Measure
Gallons

Description

Electronic Flowmeter, Product Type Turbine Flow Meter, Flowmeter Type Turbine, Accuracy +/-5 Percent, Connection Size 1 in, Connection Type Hose, Compatible Flow Material DEF, Media Temperature - Maximum 122 Degrees F, Media Temperature - Minimum 14 Degrees F, Voltage - Maximum Battery Backup, Housing Material Polypropylene, O-Ring Material Viton, Seal Material Viton, Wetted Material EPDM, Standards ISO 22241, Unit Of Measure Gallons, Display Type Digital, Flow Rate - Maximum 26 gpm
