  9. Pressure Gauge, 0 to 160 psi, 4 in Dial, 1/2 in NPT, Bottom Location

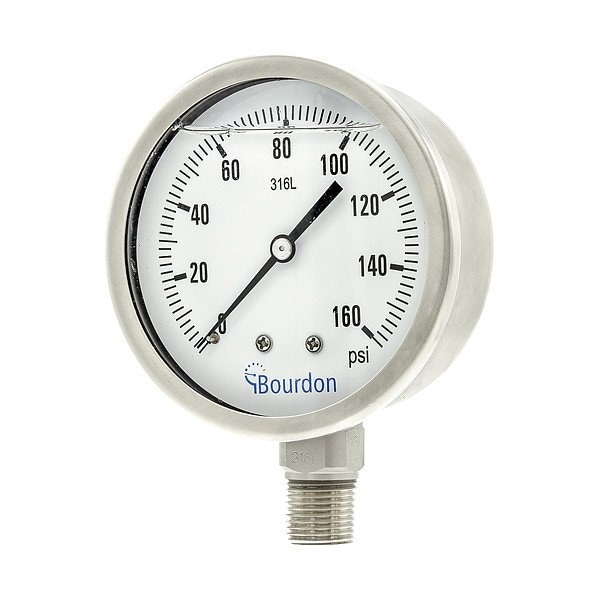

Bourdon Pressure Gauge, 0 to 160 psi, 4 in Dial, 1/2 in NPT, Bottom Location MEX5-D62.H22/0133 - main

Pressure Gauge, 0 to 160 psi, 4 in Dial, 1/2 in NPT, Bottom Location

  • Mfr # MEX5-D62.H22/0133

  • Zoro # G5114833

product price: $116.99
/ea
Free Shipping & Returns

Key Features

Accuracy
+/-1.00%
Process Connection Location
Bottom
Process Connection Size
1/2 in
Process Connection Type
NPT
Dial Size (In.)
4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
MEX5-D62.H22/0133
Zoro #
G5114833
UPC #
-
Country of Origin
France

Dimensions

Process Connection Size
1/2 in
Dial Size (In.)
4 in
Gauge Connection Size
1/2 in
Connection Size
1/2 in NPT
Manufacturers Warranty Length
1 yr
Gauge Nominal Dial Size
4 in
Manufacturer Warranty Length
1 yr
Nominal Dial Size
4 in
Case Diameter
3.98 in
Nominal Dial Diameter
100 mm
Case Depth
50.5 in

Details

Item
Pressure Gauge
Accuracy
+/-1.00%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
Industrial
Gauge Case Material
304 Stainless Steel
Series
MEX5
Lens Material
Glass
Primary Pressure Range
0 to 160
Primary Scale Units
psi
IP/NEMA Rating
Not Rated
Liquid-Filled Case
Yes
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
Yes
Range
0 to 160 psi
Includes
Vent Plug
Gauge Secondary Range Values
-100 to 0
Gauge Socket Material
316L Stainless Steel
Gauge Secondary Range Units
Bar
Gauge Filled With
Glycerin
Operating Temp. Range
-4 Degrees to 158 Degrees F
Graduations
20 psi
Case Color
Metallic
Gauge Connection Location
Bottom
Gauge Primary Range Smallest Graduation
20
Gauge Primary Range Units
psi
Gauge Special Options
Heavy Duty
Gauge Sensor Material
316L Stainless Steel
Gauge Lens Material
Plastic
Gauge Primary Range Numbered Graduations
2
Gauge Primary Range Values
0 to 160
Gauge Case Color
Polished Stainless Steel
Calibration Certificate Included
No
Smallest Graduation
2 psi
Liquid Filled
Yes
Gauge Connection Type
MNPT
For Use With
Industrial Applications, Media Compatible
Gauge Accuracy
+/-1.00%
Characteristics
Crimped Bezel
Connection Location
Lower
Case Material
Stainless Steel
Socket Material
316 Stainless Steel
Connection Type
MNPT
Standards
ATEX Ex II 2 GDc-IM2c, EN 837-1
Includes Vent Plug
Yes
Accuracy Scale
Full Scale
Field Fillable
No
Non-Sparking
Yes
Pressure Range Type
Compound
Scale Type
Single
Process Connection Gender
Male
Includes Mounting Hardware
No
Bezel Mounting Type
Crimped
Primary Scale Minor Graduations
20
Vibration Resistance
Liquid-Filled
Dial Color
White
Freeze Resistant Movement
No
Includes Calibration Certificate
No
Sensor Material
316L Stainless Steel
Removable Bezel
No
Gauge Case Liquid
Glycerin
Ambient Operating Temperature Range
-4 Degrees to 158 Degrees F
Primary Scale Numeric Increments
2
Pressure Gauge Type
Industrial Pressure Gauge
Accuracy Grade
EN 837-1
Cleaned for Oxygen Service
No
Pointer Color
Black
Secondary Scale Units
bar
Operating Temperature Range
-4 Degrees to 158 Degrees F
Compatible with Brand
Universal
Primary Scale Pressure Measurement - Maximum
160 psi
Operating Temperature - Maximum
70 Degrees C
Primary Scale Vacuum Measurement - Minimum
0 psi
Process Media Temperature - Maximum
158 Degrees F
Primary Scale Pressure Measurement - Minimum
0 psi
Compatible with Series
MEX5
Operating Temperature - Minimum
-20 Degrees C
IP Rating
IP65
Process Media Temperature - Minimum
-4 Degrees F
Case Liquid
Glycerin
Primary Scale Vacuum Measurement - Maximum
160 psi
NEMA Enclosure Rating
No Enclosure
Dial Face Material
Aluminum
Pointer Material
Aluminum
Bezel Gasket Material
Elastomer
Bezel Material
Stainless Steel

Description

Pressure Gauge, Accuracy +/-1.00 Percent, Process Connection Type NPT, Process Connection Gender Male, Lens Material Glass, Process Connection Size 1/2 in, Field Fillable No, Process Connection Location Bottom, Case Color Metallic, Dry Dampening Feature Not Applicable, Dial Color White, Pressure Gauge Type Industrial Pressure Gauge, Liquid-Filled Case Yes, Panel-Mountable No, Socket Material 316 Stainless Steel, Sensor Material 316L Stainless Steel, Accuracy Grade EN 837-1, Series MEX5
