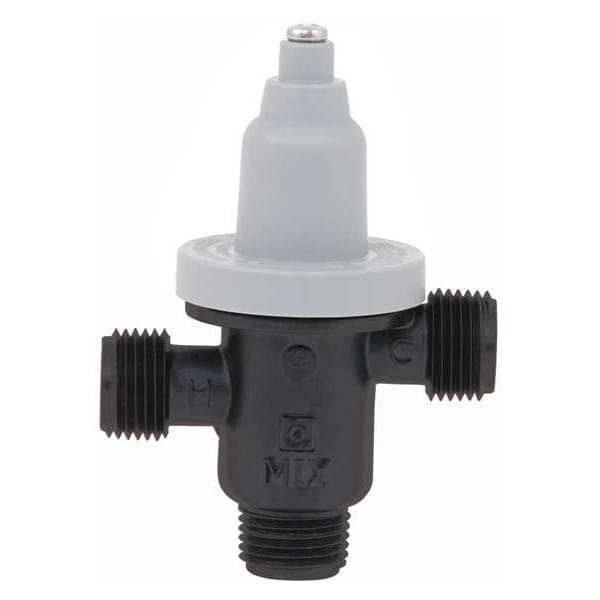

Thermostatic Valve for Faucet 5 GPM
- Zoro #: G5072943
- Mfr #: S59-4000
$79.99
- Standards: Annex G, ASSE 1070CSA B125.3NSF 61
- Max. Pressure: 125 psi
- Overall Height: 4 1/8 in
Bradley #S59-4000 Specifications
| |
| Standards: Annex G, ASSE 1070CSA B125.3NSF 61 | Max. Pressure: 125 psi |
| Overall Height: 4 1/8 in | Inlet Temperature (Hot): 120 Degrees to 180 Degrees F |
| Outlet Size: 1/2 in | Item: Mixing Valve |
| Inlet Size: 1/2 in | Overall Width: 1 7/8 in |
| Inlet Temperature (Cold): 33 Degrees to 80 Degrees F | Flow Rate: 0.35 to 5.5 gpm |
| Temp. Range: 95 Degrees to 125 Degrees F | Outlet Type: MNPT |
| Inlet Type: MNPT | Body Material: Glass-Filled Polysulfone |
| Country of Origin (subject to change): Multiple | |
Help us improve our product informationDescription
Mixing Valve, Body Material Glass-Filled Polysulfone, Flow Rate 0.35 to 5.5 gpm, Inlet Type MNPT, Outlet Type MNPT, Inlet Size 1/2 in, Outlet Size 1/2 in, Temp. Range 95 Degrees to 125 Degrees F, Max. Pressure 125 psi, Overall Height 4 1/8 in, Overall Width 1 7/8 in, Inlet Temperature (Cold) 33 Degrees to 80 Degrees F, Inlet Temperature (Hot) 120 Degrees to 180 Degrees F, Standards Annex G, ASSE 1070CSA B125.3NSF 61
Restrictions and Compliance
| This product has been certified by a third party to be compliant with the “Safe Drinking Water Act” requirements for low lead in potable (human consumption - drinking and cooking) and non-potable water applications (non-human consumption). |
