  11. Tee, SS, Comp 3/8", Comp 3/8", Comp 3/8"

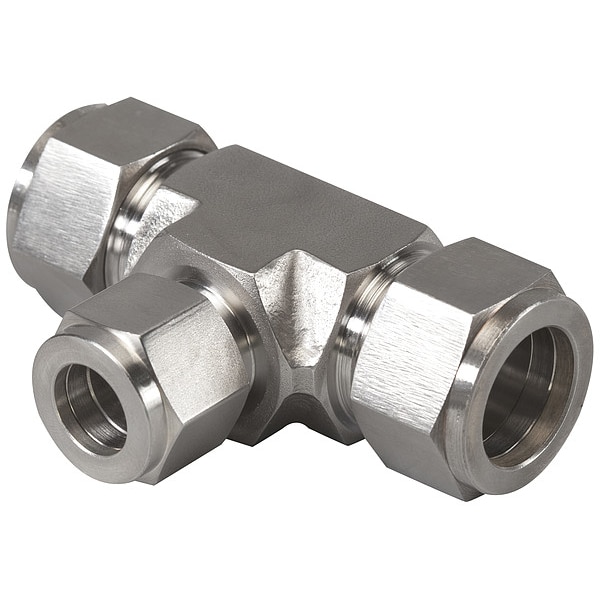

Brennan Industries Tee, SS, Comp 3/8", Comp 3/8", Comp 3/8" N2603-06-06-06-SS - main

Tee, SS, Comp 3/8", Comp 3/8", Comp 3/8"

  • Mfr # N2603-06-06-06-SS

  • Zoro # G905386473

product price: $46.29
/ea

Key Features

Compression Thread Size
9/16-18
Fitting Side A Tube Outer Diameter
3/8 in
Material Grade
316
Thread Size B
9/16-20
Fitting Side C Tube Outer Diameter
3/8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
N2603-06-06-06-SS
Zoro #
G905386473
UPC #
-
Country of Origin
India

Dimensions

Compression Thread Size
9/16-18
Fitting Side A Tube Outer Diameter
3/8 in
Thread Size B
9/16-20
Fitting Side C Tube Outer Diameter
3/8 in
Pipe Size - Pipe Fitting
3/8 in x 3/8 in x 3/8 in
Hex Size
17 mm
Fitting Side B Tube Outer Diameter
3/8 in
Compatible Tube Wall Thickness
0.035 in
Thread Size C
9/16-20
Overall Length
2 13/32 in
Thread Size A
9/16-18
Thread Size 1
9/16"-18
Fitting Side 3 Tube Outer Diameter
3/8 in
Thread Size 3
9/16"-20
Fitting Side 1 Tube Outer Diameter
3/8 in
Thread Size 2
9/16"-20
Fitting Side 2 Tube Outer Diameter
3/8 in

Details

Material Grade
316
Minimum Operating Temperature
20 Degrees F
Specific Fitting Shape
Tee
Fitting Material
Stainless Steel
Standards
ASME B31.3-2002, ASTM A269-04
Item
Compression Tee Fitting
Tube Fitting Material
Stainless Steel
Fitting Side B Connection Type
Compression
Compatible Tube Hardness
90 HRB
Fitting Side A Connection Type
Compression
Temp. Range
-20 Degrees to 100 Degrees F
Fitting Side C Connection Type
Compression
Series
Brennan Instrumentation
Maximum Operating Pressure
3,326 psi
Compatible Fitting Brands
Parker A-LOK, Swagelok
System of Measurement
Imperial
Fitting Connection Type
Instrumentation x Instrumentation x Instrumentation
Maximum Operating Temperature
100 Degrees F
Max. Pressure
75000 psi
Application
Hydraulics, Tubing Systems
Fitting Shape
Tee
Compliance
ASME Specifications, ASTM Specifications
Special Features
All Components are Made of the Same Material for Thermal Compatibility and Corrosion Resistance, Resist Temperature Cycling, Resist Vibration, Self-Aligning, Work on Thick and Thin Wall Tubing
Operating Pressure - Maximum
3,326 psi
For Media Type
Gases
Fitting Side 3 Connection Type
Compression
Fitting Side 1 Connection Type
Compression
Operating Temperature - Maximum
100 Degrees F
Operating Temperature - Minimum
20 Degrees F
Fitting Side 2 Connection Type
Compression

Description

Compression Tee Fitting, Application Hydraulics, Tubing Systems, Fitting Side A Connection Type Compression, Fitting Side B Connection Type Compression, Fitting Side C Connection Type Compression, Fitting Material Stainless Steel, Fitting Side A Tube Outer Diameter 3/8 in, Fitting Side B Tube Outer Diameter 3/8 in, Fitting Side C Tube Outer Diameter 3/8 in, Thread Size C 9/16-20, Thread Size B 9/16-20, Thread Size A 9/16-18, System of Measurement Imperial
