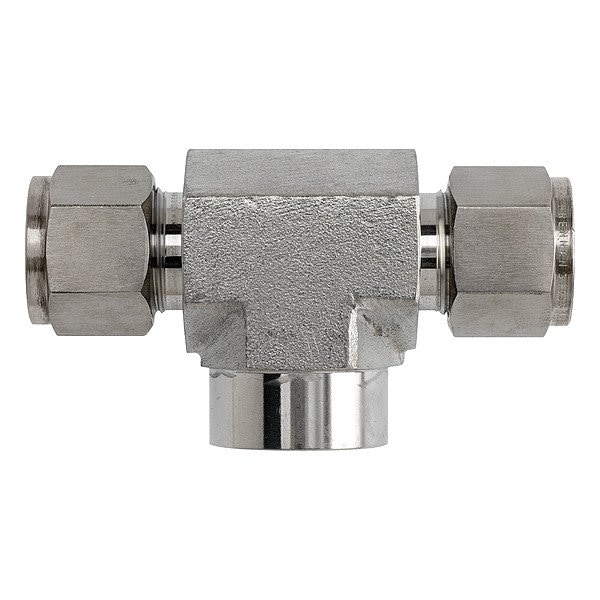

Tee, SS, Comp 3/8", Comp 3/8", FNPT 1/4"
- Mfr # NS2602-06-06-04-SS
- Zoro # G616138033
product price:Â
$
41.59
/ea
Key Features
Standards
ANAB Accredited/ISO 9001:2015/TUV Rhineland Certified, AS9100 Registered, ASTM International, CRN Registered, ISO 9001 Certified, ITAR Compliant, Nadcap Accredited, NFPA Member
Ferrule Type
Single Ferrule
Precleaned Type
Cleaned and Bagged
Fitting Side 3 Pipe Size
1/4 in
Fitting Side 2 Connection Type
Compression
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- NS2602-06-06-04-SS
- Zoro #
- G616138033
- UPC #
- -
- Country of Origin
- India
- Item
- Single Ferrule Instrumentation Fittings
- Standards
- ANAB Accredited/ISO 9001:2015/TUV Rhineland Certified, AS9100 Registered, ASTM International, CRN Registered, ISO 9001 Certified, ITAR Compliant, Nadcap Accredited, NFPA Member
- Ferrule Type
- Single Ferrule
- Precleaned Type
- Cleaned and Bagged
- Fitting Side 2 Connection Type
- Compression
- System of Measurement
- Imperial
- Fitting Shape
- Tee
- Connector Type
- Adapter
- Material Grade
- 316
- Series
- NS2602
- Compatible Fitting Brands
- Parker CPI
- Fitting Side 3 Connection Type
- FNPT
- Fitting Material
- Stainless Steel
- Operating Temperature - Minimum
- -45 Degrees F
- Fitting Side 1 Connection Type
- Compression
- Operating Temperature - Maximum
- 1,200 Degrees F
- For Media Type
- Air, Gases
- Operating Pressure - Maximum
- 3,326 psi
Dimensions
- Fitting Side 3 Pipe Size
- 1/4 in
- Fitting Side 1 Tube Outer Diameter
- 3/8 in
- Fitting Side 2 Tube Outer Diameter
- 3/8 in
- Overall Length
- 2 15/32 in
- Wire Rope Length
- 2 15/32 in
- Length
- 2 15/32 in
Description
Single Ferrule Instrumentation Fittings, Fitting Material Stainless Steel, System of Measurement Imperial, Compatible Fitting Brands Parker CPI, Material Grade 316, Overall Length 2 15/32 in, Series NS2602, Standards ANAB Accredited/ISO 9001:2015/TUV Rhineland Certified, AS9100 Registered, ASTM International, CRN Registered, ISO 9001 Certified, ITAR Compliant, Nadcap Accredited, NFPA Member
