  6. Locking Receptacle, L5-15R, 15 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Orange

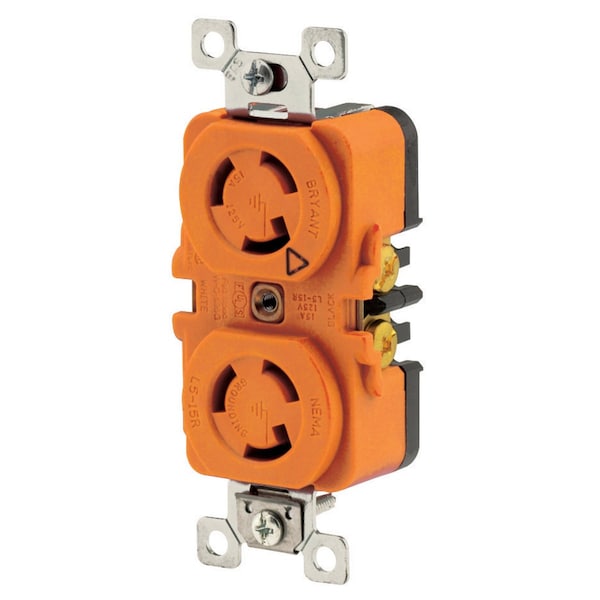

Bryant Locking Receptacle, L5-15R, 15 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Orange 4700DRIG - main

Locking Receptacle, L5-15R, 15 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Orange

  • Mfr # 4700DRIG

  • Zoro # G804391974

product price:  $48.43
/ea

Key Features

NEMA Receptacle Configuration
L5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
4700DRIG
Zoro #
G804391974
UPC #
781786002067
Country of Origin
Puerto Rico

Dimensions

Wire Size
#14 AWG to #8 AWG
Length
3.28 in
Height
0.93 in
Width
1.70 in

Details

Item
Locking Receptacle
NEMA Receptacle Configuration
L5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Grounding
Isolated Ground
Housing Color
Orange
Mount Type
Screw Mounting
Cover Type
No Cover
Standards
Certified for current interrupting at full rated current, FED SPEC UL/CSA
Flange Type
Non-Flanged
Material
Composite
Wiring Style
Isolated Ground
Mounting Type
Screw Mounting
Features
Reinforced thermoplastic construction; Single piece, all brass contacts; Single point break-off tabs; Mounting strap tabs lock the body and base together
Application
Extra Heavy Duty Industrial Specification Grade
Material - Mounting Hardware
Screw Mounting
Series
Locking
Style
Isolated Ground

Description

Locking Devices, Locking Devices, Isolated Ground Industrial, Duplex Receptacle, 15A 125V, 2-Pole 3-Wire Grounding, L5- 15R, ScrewTerminal, Orange
