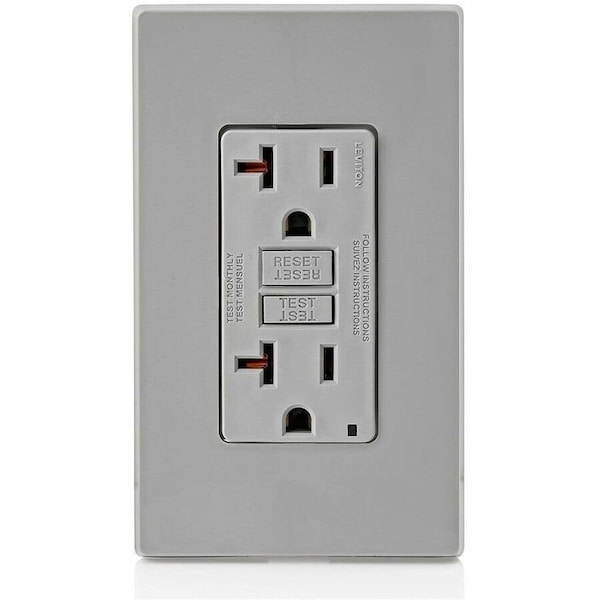

Leviton GFIRcptcl, 20A, 125VAC, Gry, Polycarbonate GFNT2-GY - main

GFIRcptcl, 20A, 125VAC, Gry, Polycarbonate

  • Mfr # GFNT2-GY

  • Zoro # G404392920

product price:  $22.59
/ea

Key Features

Cover Type
No Cover
Current Rating
20 A
GFCI
Yes
Phase
Single
Grounding
Grounded
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
GFNT2-GY
Zoro #
G404392920
UPC #
07847771275
Country of Origin
China

Dimensions

Maximum Wire Size
10 AWG
Minimum Wire Size
14 AWG

Details

Item
GFI Receptacle
Cover Type
No Cover
Current Rating
20 A
GFCI
Yes
Phase
Single
Grounding
Grounded
Housing Color
Gray
Number of Outlets
2
Housing Material
Polycarbonate
NEMA Receptacle Configuration
5-20R
Number of Poles
2
Number of Wires
3
Polarized
Yes
Standards
CSA C22.2 - 144.1 (GFCI) and 42 (Receptacles), CSA Certified, CSA Certified LR-57811, NOM Certified, UL 943 Class A (GFCI) and 498 (Receptacles), UL Listed, UL Listed E48380
Tamper Resistant
No
Wiring Method - Plugs and Receptacles
Back and Side
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Self-Testing
Yes
Item - Plugs and Receptacles
GFCI Receptacle
Type
Standard Duplex
Voltage - Plugs and Receptacles
125V
Wiring Method
Back, Side
Mounting Type - Plugs and Receptacles
Flush
Power Indicator
Yes
Voltage
125 VAC
Color - Plugs and Receptacles
Gray
Outlet Type - Plugs and Receptacles
Standard Duplex
Weather Resistant - Plugs and Receptacles
No
Surge Suppression
Yes
Color
Gray
Application Environment
Commercial
HP
1 hp
Special Features
Auto Adapts and Shifts, Auto-Monitoring, Continuous Ground Fault Protection, Over-Voltage Resistant, Patented Lockout Action Prevents Reset, Standard Brass Self-Grounding Clip
Amps - Plugs and Receptacles
20 A
Market
Commercial, Residential
Includes
Faceplate, Wallplate
Hub Type
Feed Through
Maximum Operating Temperature
150.8 Degrees F
Receptacle Type
Decorator Duplex
Voltage Rating
125V AC
Grade
Federal Specification
Wire Connection Type
Screw Terminals
Horsepower Rating
1 hp
Visual Indicator Lights
Power Connected
Surge Protection
No
Mount Type
Flush
Self Testing
Yes
Includes Mounting Hardware
Yes
Contact Material
Brass
Minimum Operating Temperature
-31 Degrees F
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Strap Material
Galvanized Steel
Terminal Screws
Plated Steel
Clamps
Brass
Line Contacts
Brass Triple-Wipe .031 Thick
Wire
3
Termination
Back & Side
Wallplate
Included
Operating Temperature
-35C to +66C
Yoke
Zinc-Plated Steel
Torque Range
14-18 in.-lbs
Fed Spec WC-596
Yes
Trip Level
Class A, 5mA plus or minus 1mA
UL498
Yes
Face Material
Thermoplastic
Terminal Accom.
14-10 AWG
Feature
Self-Test
NEMA
5-20R
Grounding Screw
Plated Steel
CSA-C22.2 No. 144.1-06
File LR-57811
Short Circuit Current Rating
10KA
ANSI
C-73
Dielectric Voltage
Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06
Standards and Certifications
UL/CSA, NEMA WD6, NEMA WD1
Pole
2
UL 943
File E48380
CSA C22.2 No. 42
Yes
Body Material
Polycarbonate
At Rated Voltage
1 HP
Temperature Rise
Max 30C after 100 cycles OL at 150 percent rated current
Amperage
20 A

Description

GFI Receptacle, Cover Type No Cover, Current Rating 20 A, GFCI Yes, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Gray, Housing Material Polycarbonate, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Not Applicable
