  11. Locking Receptacle, L6-15R, 15 A, 250V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals

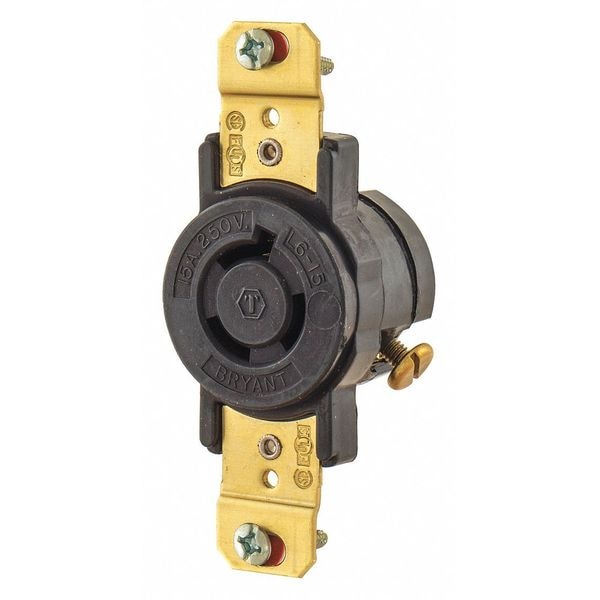

Bryant Locking Receptacle, L6-15R, 15 A, 250V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals 70615FR - main

Locking Receptacle, L6-15R, 15 A, 250V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals

  • Mfr # 70615FR

  • Zoro # G4439447

product price: $22.77
/ea

Key Features

NEMA Receptacle Configuration
L6-15R
Current Rating
15 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
70615FR
Zoro #
G4439447
UPC #
781786703551
Country of Origin
United States

Dimensions

Minimum Wire Size
14 AWG
Maximum Wire Size
8 AWG
Wire Size
#14 AWG to #8 AWG
Length
3.28 in
Height
1.17 in
Width
1.70 in

Details

Item
Locking Receptacle
NEMA Receptacle Configuration
L6-15R
Current Rating
15 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Shrouded
No
Grounding
Grounded
Housing Color
Black
Mount Type
Flush
Cover Type
No Cover
Standards
UL 498
Resistance Properties
Moisture Resistant
Flange Type
Non-Flanged
Material
Nylon
Mounting Type
Flush Mount
Wiring Style
Standard
Grade
Industrial
For Environment
Dry
For Location
Indoor
Polarized
Yes
Includes
Mounting Strap
Horsepower Rating
1 1/2 hp
Market
Industrial
Housing Material
Composite
Includes Mounting Hardware
Yes
Contact Material
Brass
Amperage Rating
15 A
Material - Mounting Hardware
Screw Mounting
Style
Single Receptacle
Application
Extra Heavy Duty Industrial Specification Grade
Features
Reinforced thermoplastic construction; Single piece, all brass contacts; All terminals are back and side wired; Brass mounting strap with stainless steel grounding clip
Amps
15

Description

Locking Receptacle, Current Rating 15 A, Housing Color Black, Housing Material Composite, Mount Type Flush, NEMA Receptacle Configuration L6-15R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Shrouded No, Voltage Rating 250V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Contact Material Brass, Grade Industrial, Grounding Grounded
