  11. Midget Locking Connector, ML1-15R, 15 A, 125V AC, Single Phase, 2 Pole, Screw Terminals

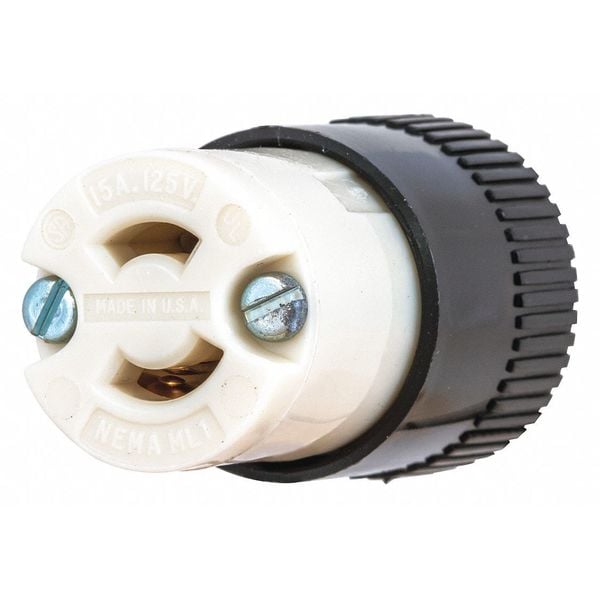

Bryant Midget Locking Connector, ML1-15R, 15 A, 125V AC, Single Phase, 2 Pole, Screw Terminals 7464N - main

Midget Locking Connector, ML1-15R, 15 A, 125V AC, Single Phase, 2 Pole, Screw Terminals

  • Mfr # 7464N

  • Zoro # G4439316

product price: $14.13
/ea

Key Features

NEMA Receptacle Configuration
ML1-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
7464N
Zoro #
G4439316
UPC #
781786638501
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
0.425 in
For Minimum Cable Diameter
0.22 in
Cord Size
0.220 in to 0.425 in
Maximum Wire Size
12 AWG
Overall Length
1.25 in
Minimum Wire Size
18 AWG
Wire Size
#18 AWG to #12 AWG
Height
2.15 in
Length
1.25 in
Width
1.25 in

Details

Item
Midget Locking Connector
NEMA Receptacle Configuration
ML1-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
2
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Non-Grounded
Housing Color
Black, White
Cap Type
No Cap
IP Rating
IP20
Standards
CSA Certified, UL Listed
Resistance Properties
Shatter and Crack Resistant
Flange Material
Nylon
For Use With
Midget Locking Plug or Flanged Inlet
Body Material
Nylon
Material
Composite
Minimum Operating Temperature
-40 Degrees F
For Environment
Dry
Market
Industrial
Midget Locking
Yes
Housing Material
Nylon
Maximum Operating Temperature
75 Degrees C
Amperage Rating
15 A
Style
Non-Grounding
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Insulation
Insulated Body
Material - Mounting Hardware
Cord Mounted
Conductor Range
#14 AWG
Application
Heavy Duty Industrial
Features
Smaller body size for use in tighter fit applications where larger products can't; Abuse resistant nylon housing

Description

Midget Locking Connector, Connection Orientation Straight, Current Rating 15 A, Housing Color Black, White, Housing Material Nylon, IP Rating IP20, NEMA Receptacle Configuration ML1-15R, Number of Poles 2, Number of Wires 2, Phase Single, Resistance Properties Shatter and Crack Resistant, Shrouded No, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Cap Type No Cap or Cover, For Maximum Cable Diameter 0.425 in, For Minimum Cable Diameter 0.22 in
