Shop BRYANT

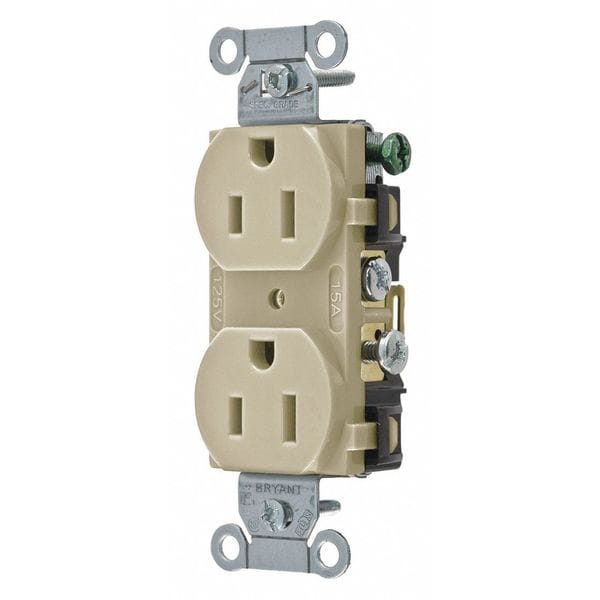

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # CBRS15ITR

  • Zoro # G4818865

product price:
$
7.15
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CBRS15ITR
Zoro #
G4818865
UPC #
00781786410640
Country of Origin
China

Dimensions

Maximum Wire Size
12 AWG
Minimum Wire Size
14 AWG
Wire Size
#14 AWG to #12 AWG
Display Size
Standard Sized Product
Mount Hole Center-to-Center Height
3.3 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Gray
Mount Type
Flush
Standards
CSA Certified, Federal Specification, UL Listed
Resistance Properties
Corrosion Resistant, Tamper Resistant
Flange Type
Non-Flanged
Weather Resistant
No
Surge Suppression
No
Weather Resistant - Plugs and Receptacles
No
Number of Gangs
1
HP
1/2 hp
Mounting Type
Flush
Tamper Resistant
Yes
Mounting Type - Plugs and Receptacles
Flush
Corrosion Resistant
Yes
Material
Nylon
Outlet Type - Plugs and Receptacles
Standard Duplex
Special Features
Corrosion resistant
Wiring Method - Plugs and Receptacles
Back and Side
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Sub-Category
Duplex Receptacles
Power Indicator
No
Application Environment
Commercial
Outlet Type
Duplex
Voltage
125VAC
For Location
Indoor
Includes
Mounting Hardware
Connection Orientation
Straight
Horsepower Rating
1/2 hp
Market
Commercial
Polarized
Yes
Includes Mounting Hardware
Yes
AFCI
No
Housing Material
Composite
Surge Protection
No
GFCI
No
Cover Type
No Cover
Grade
Federal Specification
Style
Smooth Face
Nema Rating
5-15R
Wattage
1875
Material - Mounting Hardware
Screw Mounting
Application
Commercial Specification Grade
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Number of Outlets
2
IP Rating
IP20
Number of Wall Plates Included
0

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Ivory, Housing Material Composite, Mount Type Flush, NEMA Enclosure Rating Not Applicable, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Tamper Resistant
