  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

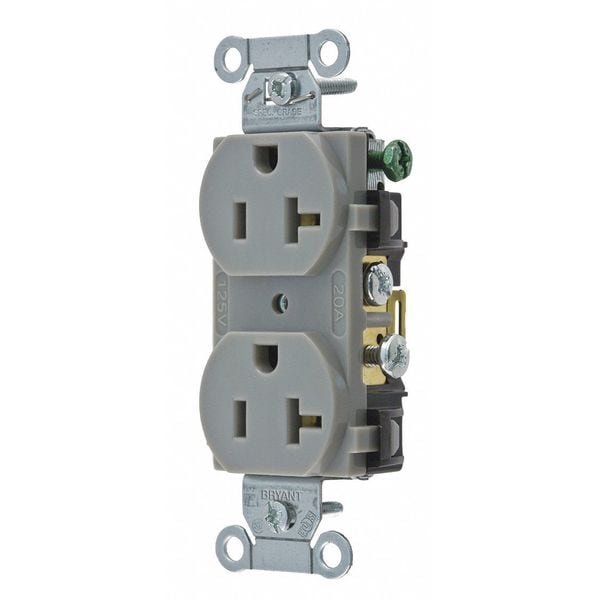

Bryant Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded CRS20GRY - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # CRS20GRY

  • Zoro # G4845191

product price: $3.17
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CRS20GRY
Zoro #
G4845191
UPC #
781786161061
Country of Origin
China

Dimensions

Width
1.38 in
Height
1.07 in
Mount Hole Center-to-Center Height
4.1 in
Face Plate Height
2.7 in
Minimum Wire Size
14 AWG
Maximum Wire Size
12 AWG
Overall Depth
1.1 in
Display Size
Standard Sized Product
Wire Size
#14 AWG to #12 AWG
Length
3.28 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Side
Grounding
Grounded
Housing Color
Gray
Mount Type
Flush
Standards
CSA Certified, Federal Specification, UL Listed
Resistance Properties
Corrosion Resistant, Impact Resistant
Flange Type
Non-Flanged
Wiring Method - Plugs and Receptacles
Side
Mounting Type - Plugs and Receptacles
Flush
Power Indicator
No
Weather Resistant
No
Corrosion Resistant
Yes
Tamper Resistant
No
Outlet Type
Duplex
Sub-Category
Duplex Receptacles
Surge Suppression
No
Voltage
125VAC
Material
Nylon
Outlet Type - Plugs and Receptacles
Standard Duplex
HP
1 hp
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Number of Gangs
1
Weather Resistant - Plugs and Receptacles
No
Application Environment
Commercial
Special Features
Corrosion resistant
Mounting Type
Flush
Cover Type
No Cover
Includes Mounting Hardware
Yes
GFCI
No
Market
Commercial
Surge Protection
No
Housing Material
Composite
For Location
Indoor
AFCI
No
Grade
Federal Specification
Polarized
Yes
Contact Material
Brass
Horsepower Rating
1 hp
Connection Orientation
Straight
Includes
Mounting Hardware
Wattage
2500
Style
Smooth Face
Application
Commercial Specification Grade
Series
Commercial
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Material - Mounting Hardware
Screw Mounting
Nema Rating
5-20R

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Housing Color Gray, Housing Material Composite, Mount Type Flush, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Impact Resistant, Standards CSA Certified, Federal Specification, UL Listed, Voltage Rating 125V AC, Wire Connection Type Screw Terminals
