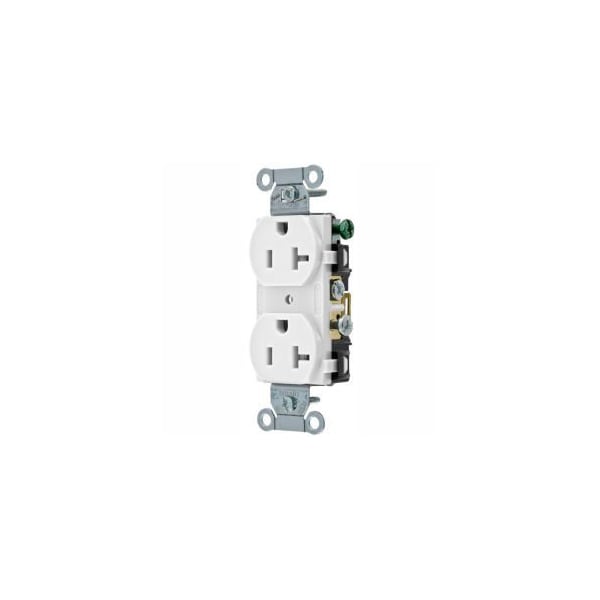

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded
Mfr # CRS20W
Zoro # G502712750
product price: $6.15
/eaSold in multiples of 5 for $30.75
Key Features
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
CRS20W
Zoro #
G502712750
UPC #
781786161092
Country of Origin
Taiwan, Province of China
Details
Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Side
Grounding
Grounded
Housing Color
White
Mount Type
Flush
Standards
CSA Certified, Federal Specification, UL Listed
Resistance Properties
Impact Resistant
Flange Type
Non-Flanged
Description
CONSTRUCTION:
- BASE MATERIAL: NYLON FACE MATERIAL: NYLON LINE CONTACTS: HIGH PERFORMANCE BRASS CLAMP NUT: STEEL MOUNTING YOKE: STEEL, NICKEL AND BRASS PLATED 050" (13) GROUNDING SCREWS: COMBINATION BRASS (GREEN) #8-32 GROUNDING CLAMP NUT: BRASS AUTO GROUND CLIP: HIGH PERFORMANCE BRASS MOUNTING SCREW: COMBINATION STEEL ZINC-PLATED TERMINAL IDENTIFICATION: BRASS-HOT; GREEN-GROUNDING; SILVER-NEUTRAL TERMINAL ACCOMMODATION: #14-#10 AWG COPPER STRANDED OR SOLID CONDUCTOR ONLY TECHNICAL SPECS:
- CIRCUIT ID: HOT STAMP DIELECTRIC VOLTAGE: WITHSTANDS 2000V PER UL498 MAXIMUM WORKING VOLTAGE: 250V AC OR DC CURRENT INTERRUPTING: CERTIFIED FOR CURRENT INTERRUPTING AT FULL RATED CURRENT TEMPERATURE RISE: LESS THAN 30 DEG C TEMPERATURE RISE AT FULL RATED CURRENT AFTER 50 CYCLES OVERLOAD AT 150% RATED CURRENT FOR EITHER AC OR DC APPLICATIONS PER UL484 FLAMMIBILITY: UL 94 V2 OPERATING TEMPERATURE: MAXIMUM CONTINUOUS 60 DEG C, MINIMUM -40 DEG C (W/O IMPACT) STANDARDS:
- NEMA#: 5-20R CSA STANDARDS: CETRIFIED TO CSA STANDARD C222 NO 42M1984 (GENERAL USE RECEPTACLES) UL LISTING: UL LISTED, FILE #E2258- GUIDE #RTRT FEDERAL SPECIFICATIONS: FEDERAL SPECIFICATION WC596 (WHERE APPLICABLE) COMPLIES WITH: NEMA STANDARDS WD-1, WD-6 OVERSEAS_APPROVAL: NOM, CE
Restrictions
This item has been restricted from sale in the following states:
CA
