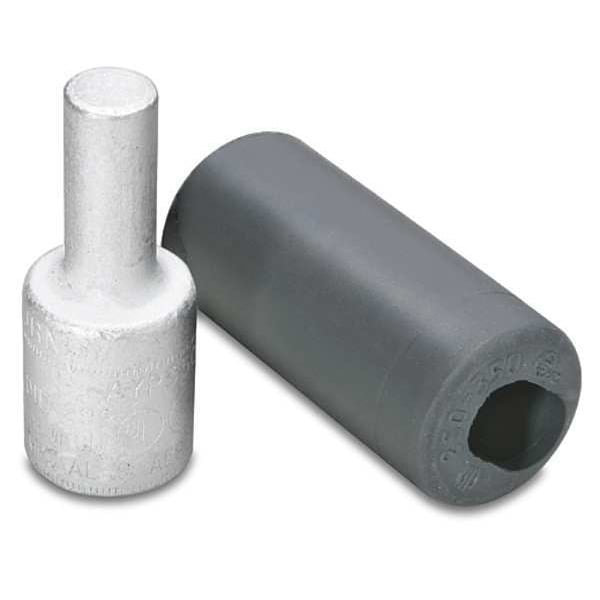

  11. Compression Adapter, 4 AWG Max, Standard Barrel, Aluminum, Tan
Burndy Compression Adapter, 4 AWG Max, Standard Barrel, Aluminum, Tan AYP4 - main

CAD Drawings

Download CAD Files

Compression Adapter, 4 AWG Max, Standard Barrel, Aluminum, Tan

  • Mfr # AYP4

  • Zoro # G4669786

CAD Available
product price: $18.85
/ea

Key Features

CAD Drawing
Width
0.6 in
Material
Aluminum
Length
1.85 in
Color Code
Tan
Max. Wire Size
4 AWG
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
AYP4
Zoro #
G4669786
UPC #
781810556467
Country of Origin
United States

Dimensions

Width
0.6 in
Length
1.85 in
Max. Wire Size
4 AWG
Min. Wire Size
6 AWG
Diameter
15/64 in
Length (Straight Wireway)
1.85 in
Barrel Diameter
0.6 in
For Stranded Aluminum Wire Size - Maximum
4 AWG
For Stranded Copper Wire Size - Maximum
4 AWG
Overall Length
1.85 in
Pin Diameter
0.234 in
Pin Equivalent Wire Size
4 AWG
Pin Length
0.68 in
For Stranded Copper Wire Size - Minimum
4 AWG
Strip Length
1 1/16 in
Barrel Length
1 in
Conductor - AL Str Size Range
4 AWG
Dimension - L Length Overall mm
47 mm
Conductor - Copper Flex I Size Range
6 AWG
Equivalent Pin Size
4 AWG
Conductor Size
4 AWG
Dimension - Length Overall inch
1.85 in
Conductor - Copper Str Size Range
4 AWG
Conductor - Copper DLO Size Range
6 AWG
Conductor - Copper Flex I Size
4 AWG
For Wire Size
4 AWG
For Maximum Wire Size - Solid
4 AWG
For Minimum Wire Size - Solid
6 AWG
For Minimum Wire Size - Stranded
4 AWG
For Maximum Wire Size - Stranded
4 AWG
Maximum Wire Size
4 AWG
Minimum Wire Size
6 AWG
Barrel Size
Standard

Details

Material
Aluminum
Color Code
Tan
For Use With
Hytools Dieless Tools MY29-3, Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V
Item
Compression Adapter
Max. Temp.
194°F
Standards
CSA Approved; UL468A-486B; UL Listed
Color
Tan
Application
For Aluminum and Copper Conductors, Mechanical Connectors in Molded Case Circuit Breakers, Panel Board Equipment and Meter Sockets
Wire Range
4 AWG
Max. Voltage
35 kv
Insulation Material
Rubber
Connection Material
Aluminum
For Conductor Material
Aluminum, Copper
Contact Finish
Tin
Maximum Voltage
35 kV
Contact Material
Aluminum
Compatible Installation Tool Model Number
Hytools Dieless Tools MY29-3, Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V
Number of Crimps
1
Connection Orientation
Straight
Die Code
296
Finish
Tin Plated
Insulated
Yes
Type
Pin Adapter
Finish Type
Tin-Plated
UL Listed
Yes
Conductor Type
CODE/FLEX
Trade Name
HYPLUGâ„¢
Pin Type
Solid
Voltage Rating
35 kV
Certification - CSA Approved
Yes
Industry Standard(s)
UL 486A-486B
Maximum Conductors
1
Maximum Operating Temperature
194Â Degrees F
RoHS Compliant
Yes
CAD Available
Yes

Description

Compression Adapter, Connection Orientation Straight, Die Code 296, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 4 AWG, For Stranded Copper Wire Size - Maximum 4 AWG, Insulation Material Rubber, Maximum Voltage 35 kV, Number of Crimps 1, Pin Diameter 0.234 in, Pin Equivalent Wire Size 4 AWG, Pin Length 0.68 in, Contact Finish Tin, Contact Material Aluminum, Barrel Diameter 0.6 in, Barrel Length 1 in, Color Code Tan
