Shop BURNDY

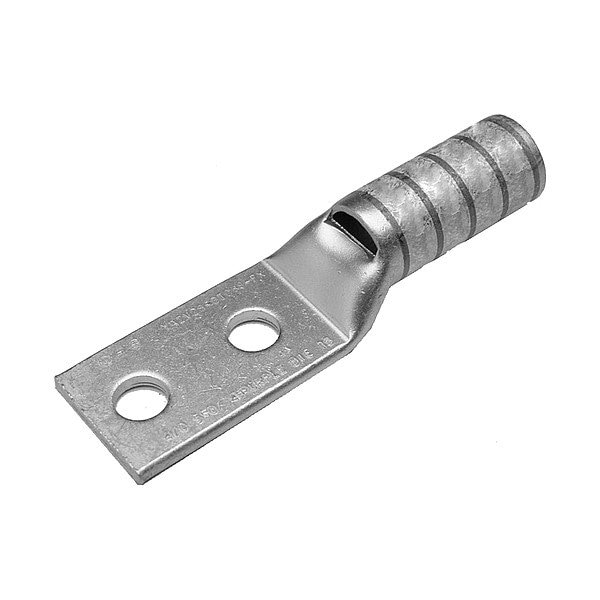

Compression Terminal

  • Mfr # YAZ342NTCFX

  • Zoro # G916557671

product price:
$
63.69
/ea

Key Features

For Stud Size
1/2 in
Hole Center to End
0.62 in
Barrel Outside Diameter
1.06 in
For Wire Type
Stranded
Hole Size
0.56 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
YAZ342NTCFX
Zoro #
G916557671
UPC #
781810166024
Country of Origin
United States

Dimensions

For Stud Size
1/2 in
Barrel Outside Diameter
1.06 in
Hole Size
0.56 in
Tongue Width
1.55 in
Overall Width
1.55 in
For Stranded Copper Wire Size - Maximum
350 kcmil
Strip Length
2 5/16 in
Barrel Size
Long
For Stranded Copper Wire Size - Minimum
350 kcmil
Overall Length
6.04 in
Tongue Thickness
0.23 in
Wire Rope Length
6.04 in
Length
6.04 in

Details

Item
Compression Lug
Hole Center to End
0.62 in
For Wire Type
Stranded
Hole Center to Center
1.75 in
Standards
CSA Certified, UL Listed
Material
Copper
Color Code
Blue
Contact Finish
Tin
Inspection Hole
Yes
Maximum Voltage
35 kV
Die Code
19, 470
For Conductor Material
Copper
Termination Style
Crimp
Barrel Style
Chamfered
Tongue Angle
Straight
Special Features
Connectors are Clearly Marked with Stamping and Barrel Color Coding, Electro-Tin Plated Unless Otherwise Specified to Reduce Galvanic Corrosion (Bimetallic) and Resist Corrosive Elements

Description

Compression Lug, Barrel Size Long, Color Code Blue, Die Code 19, 470, Tongue Angle Straight, Tongue Width 1.55 in, For Conductor Material Copper, For Stud Size 1/2 in, For Stranded Copper Wire Size - Minimum 350 kcmil, For Stranded Copper Wire Size - Maximum 350 kcmil, Inspection Hole Yes, Hole Center to Center 1.75 in, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL Listed, Number of Holes 2
