  11. Mechanical Lug, 1/0 AWG Max, 1 Conductor, 2 Hole, 3/8 in Stud, Copper

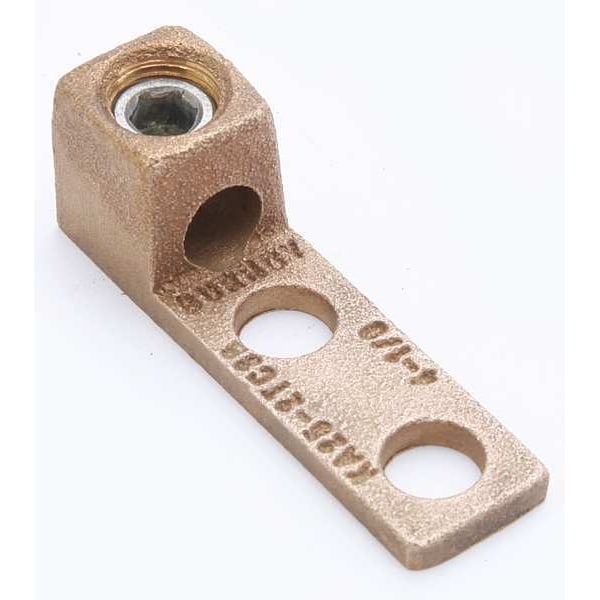

Burndy Mechanical Lug, 1/0 AWG Max, 1 Conductor, 2 Hole, 3/8 in Stud, Copper KA252TC38 - main

Mechanical Lug, 1/0 AWG Max, 1 Conductor, 2 Hole, 3/8 in Stud, Copper

  • Mfr # KA252TC38

  • Zoro # G4699091

product price: $38.99
/ea

Key Features

No. of Conductors
1
Min. Conductor Size
4 AWG Stranded
Max. Conductor Size
1/0 AWG Stranded
Number of Holes
2
Stud Size
3/8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
KA252TC38
Zoro #
G4699091
UPC #
781810554326
Country of Origin
Mexico

Dimensions

Min. Conductor Size
4 AWG Stranded
Max. Conductor Size
1/0 AWG Stranded
Stud Size
3/8 in
Length
2.69 in
Width
0.94 in
Length (Straight Wireway)
2.69 in
Overall Depth
3/4 in
Overall Length
2.69 in
Overall Width
0.94 in
Tongue Width
0.75 in
For Stud Size
3/8 in
Tongue Thickness
0.13 in
For Stranded Copper Wire Size - Minimum
4 AWG
Hole Diameter
0.42 in
For Stranded Copper Wire Size - Maximum
1/0 AWG
Conductor Size
4-1/0 AWG
Dimension - Bolt Size fraction
2023-03-08
Dimension - Height inch
0.94 in
Conductor - Copper Str Size
4 AWG;3 AWG;2 AWG;1 AWG;1/0
Dimension - Height fraction
15/16
Dimension - Pad Width inch
0.75 in
Dimension - B Length fraction
20/29 in
Conductor - Copper Str Size Range
4 AWG-1/0
Dimension - Hole Size inch
0.42 in
Dimension - N inch
0.38 in
Dimension - Hole Size mm
11 mm
Dimension - L Length Overall mm
68 mm
Dimension - Length Overall inch
2.69 in
Dimension - B Length inch
0.69 in
Dimension - Hole Size fraction
27/64
Dimension - Stud Size inch
44993
For Minimum Wire Size
4 AWG
For Maximum Wire Size
1/0 AWG

Details

Item
Mechanical Lug
No. of Conductors
1
Number of Holes
2
Material
Copper
Standards
UL Listed
Body Material
Copper
Head Style
Hex
Contact Finish
Unplated
Hole Spacing
1 in
Number of Terminations
1
Special Features
Economical, Joining A Wide Range Of Cable
Maximum Operating Temperature
194 Degrees F
Torque
200 in-lb
Compatible with Product Type
Copper Cable
Number of Conductors
1
For Conductor Material
Copper
Maximum Voltage
600 V
Type
Bolted Lugs & Terminals
Temperature Rating
194° F
Industry Standard(s)
UL468A-468B
Physical Attribute - Screw Type
Allen
Plated
N
Trade Name
KA-LUGâ„¢
Certification - CSA Approved
No
Installation Torque Recommended in-lb
200 LBS/in
Application
For Joining A Wide Range Of Copper Cable To Equipment Pads Or Terminal Blocks
Plating Type
Unplated
Conductor Type
CU C Str-Size
Rating - Minimum Voltage
600
UL Listed
Yes
Hardware Type
1 / 2 "
Physical Attribute - Number of Holes
2
Physical Attribute - Number of Screws
1
Connector Type
Terminal

Description

Mechanical Connector, For Conductor Material Copper, For Stranded Copper Wire Size - Minimum 4 AWG, For Stranded Copper Wire Size - Maximum 1/0 AWG, For Stud Size 3/8 in, Head Style Hex Socket, Number of Holes 2, Hole Diameter 0.42 in, Hole Spacing 1 in, Body Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 1, Number of Terminations 1, Tongue Length Not Applicable, Tongue Width 0.75 in, Tongue Thickness 0.13 in, Connector Type Terminal
