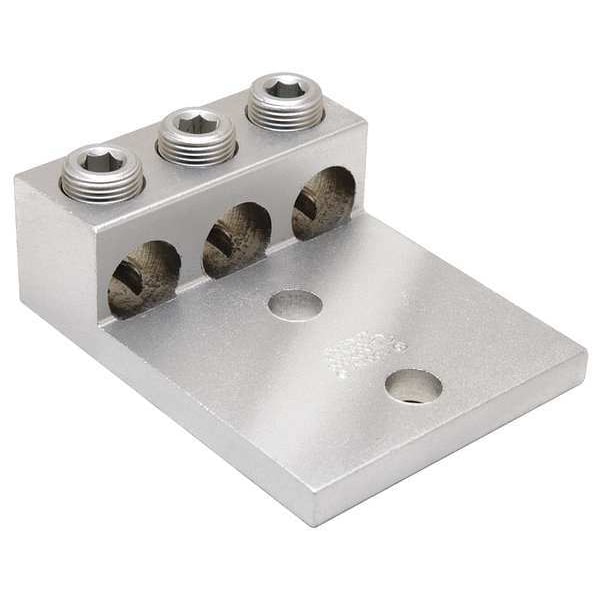

Mechanical Lug, 2 AWG Max, 3 Conductor, 2 Hole, 5/16 in Stud, Aluminum
Mfr # K3A2U2
Zoro # G4674074
CAD Available
product price: $27.79
/eaKey Features
CAD Drawing
No. of Conductors
3
Min. Conductor Size
14 AWG Stranded
Max. Conductor Size
2 AWG Stranded
Number of Holes
2
Stud Size
5/16 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
K3A2U2
Zoro #
G4674074
UPC #
781810559345
Country of Origin
United States
Dimensions
Min. Conductor Size
14 AWG Stranded
Max. Conductor Size
2 AWG Stranded
Stud Size
5/16 in
Length
2.19 in
Width
1.59 in
Length (Straight Wireway)
2.19 in
Tongue Width
1.59 in
Overall Width
0.62 in
For Stud Size
5/16 in
Overall Length
2.19 in
Hole Diameter
0.34 in
For Stranded Copper Wire Size - Minimum
14 AWG
Overall Depth
1 5/8 in
For Stranded Copper Wire Size - Maximum
2 AWG
Tongue Thickness
0.19 in
Tongue Length
1.63 in
Conductor Size
14-2 AWG
Dimension - N inch
0.34 in
Dimension - L Length Overall mm
55.62 mm
Dimension - Height inch
0.62 in
Dimension - Width fraction
1-59/100 in
Conductor - AL Str Size Range
14-2 AWG
Conductor - Copper Str Size Range
14-2 AWG
Dimension - Length Overall inch
2.19 in
Dimension - Width inch
1.64 in
Dimension - Height fraction
5/8 in
Dimension - Width mm
40 mm
Dimension - Bolt Size fraction
2023-05-16
Dimension - Pad Width inch
1.64 in
Dimension - Hole Size mm
9 mm
Dimension - Hole Size fraction
11994
Dimension - Bolt Hole Size inch
0.57 in
Dimension - D inch
1.63 in
Dimension - Hole Size inch
0.34 in
Conductor - Copper Str Size
14 AWG;12 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG
Dimension - Stud Size inch
5/16 in
Conductor - AL Str Size
8 AWG;6 AWG;4 AWG;3 AWG;2 AWG
For Maximum Wire Size
2 AWG
For Minimum Wire Size
14 AWG
Description
Mechanical Connector, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 14 AWG, For Stranded Copper Wire Size - Maximum 2 AWG, For Stud Size 5/16 in, Head Style Slotted, Number of Holes 2, Hole Diameter 0.34 in, Hole Spacing 0.88 in, Body Material Aluminum, Maximum Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 3, Number of Terminations 3, Tongue Length 1.63 in, Tongue Width 1.59 in, Tongue Thickness 0.19 in, Connector Type Terminal
