  11. Mechanical Lug, 4/0 AWG Max, 1 Conductor, 2 Hole, 1/2 in Stud, Copper

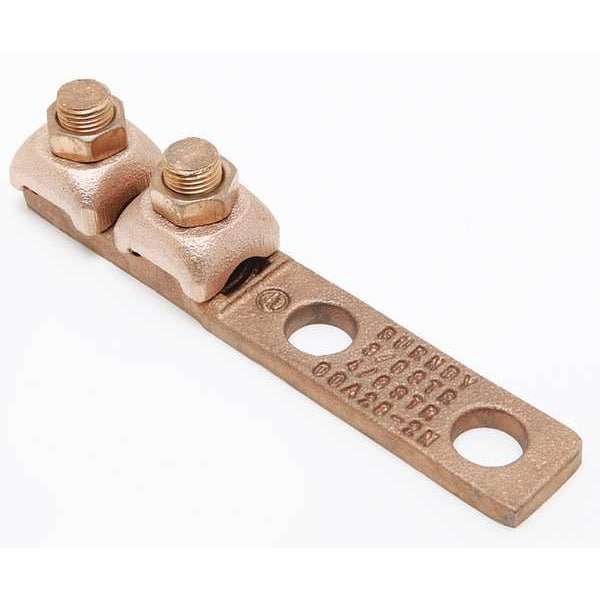

Burndy Mechanical Lug, 4/0 AWG Max, 1 Conductor, 2 Hole, 1/2 in Stud, Copper QQA282N - main

Mechanical Lug, 4/0 AWG Max, 1 Conductor, 2 Hole, 1/2 in Stud, Copper

  • Mfr # QQA282N

  • Zoro # G4690743

product price: $174.99
/ea
Free Shipping & Returns

Key Features

No. of Conductors
1
Min. Conductor Size
3/0 AWG Stranded
Max. Conductor Size
4/0 AWG Stranded
Number of Holes
2
Stud Size
1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
QQA282N
Zoro #
G4690743
UPC #
781810553725
Country of Origin
Mexico

Dimensions

Min. Conductor Size
3/0 AWG Stranded
Max. Conductor Size
4/0 AWG Stranded
Stud Size
1/2 in
Length
5.63 in
Width
1.31 in
Length (Straight Wireway)
5.63 in
Overall Length
5.63 in
For Stranded Copper Wire Size - Maximum
4/0 AWG
Tongue Length
3.13 in
For Stud Size
1/2 in
Overall Depth
1 in
Hole Diameter
0.56 in
Tongue Thickness
0.25 in
For Stranded Copper Wire Size - Minimum
3/0 AWG
Tongue Width
1 in
Overall Width
1.31 in
Conductor Size
3/0-4/0 AWG
Dimension - Height inch
1.31 in
Conductor - Copper Str Navy Size Range
150 (61) Navy-200 (61) Navy
Conductor - Copper Str Size Range
3/0 AWG-4/0 AWG
Conductor - Copper Str Navy Size
150 (61) Navy;200 (61) Navy
Dimension - L Length Overall mm
143 mm
Dimension - Hole Size inch
0.56 in
Conductor - Copper Str Size
3/0 AWG;4/0 AWG
Dimension - Length Overall inch
5.63 in
Dimension - N inch
0.63 in
Dimension - Hole Size mm
14 mm
Dimension - Pad Width inch
1.00 in
Dimension - F Width Center to Center inch
1.75 in
Dimension - D inch
3.13 in
Dimension - Height fraction
1.3125 in
Dimension - Bolt Size fraction
1 to 2
For Minimum Wire Size
3/0 AWG
For Maximum Wire Size
4/0 AWG

Details

Item
Mechanical Lug
No. of Conductors
1
Number of Holes
2
Material
Copper
Standards
CSA Certified, UL Listed
Head Style
Hex
Body Material
Copper
For Conductor Material
Copper
Number of Terminations
1
Maximum Operating Temperature
194 Degrees F
Maximum Voltage
600 V
Special Features
One-Wrench Installation, Twin Clamping Elements Secure Joint Vibration And Flexing
Hole Spacing
1.75 in
Compatible with Product Type
Copper Cable
Torque
250 in-lb
Number of Conductors
1
Contact Finish
Unplated
Type
Bolted Lugs & Terminals
Trade Name
QIKLUGâ„¢
Industry Standard(s)
UL468A-468B
Physical Attribute - Screw Type
Hexagonal Bolt
Plating Type
Unplated
Plated
N
Physical Attribute - Number of Holes
2
Installation Torque Recommended in-lb
250 LBS/in
Physical Attribute - Number of Screws
2
UL Listed
Yes
Conductor Type
CU C Str-SizeCU C Str Navy-Size
Application
For Copper Cable
Certification - CSA Approved
No

Description

Mechanical Connector, For Conductor Material Copper, For Stranded Copper Wire Size - Minimum 3/0 AWG, For Stranded Copper Wire Size - Maximum 4/0 AWG, For Stud Size 1/2 in, Head Style Double Hex Head, Number of Holes 2, Hole Diameter 0.56 in, Hole Spacing 1.75 in, Body Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 1, Number of Terminations 1, Tongue Length 3.13 in, Tongue Width 1 in, Tongue Thickness 0.25 in, Connector Type Terminal
