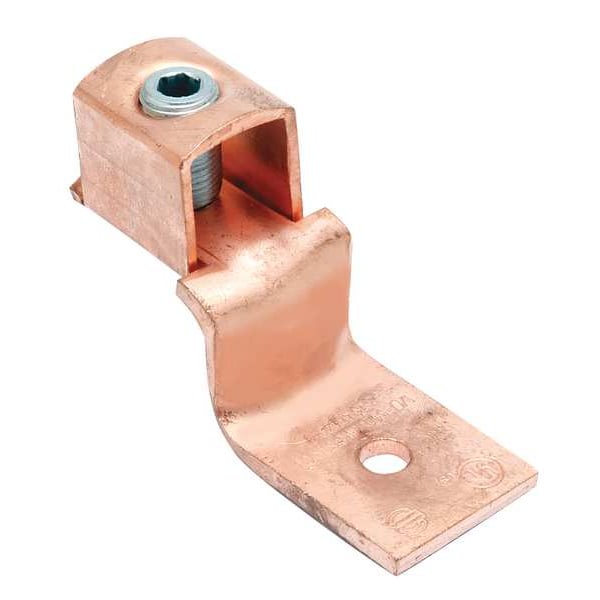

Mechanical Lug, 6 AWG Max, 1 Conductor, 1 Hole, #10 Stud, Copper
Mfr # KLU35TP
Zoro # G4655777
product price: $14.69
/eaKey Features
For Conductor Material
Copper
For Minimum Wire Size
14 AWG
For Maximum Wire Size
6 AWG
Number of Conductors
1
Number of Terminations
1
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
KLU35TP
Zoro #
G4655777
UPC #
781810554203
Country of Origin
India
Dimensions
For Minimum Wire Size
14 AWG
For Maximum Wire Size
6 AWG
For Stud Size
#10
Hole Diameter
0.20 in
Tongue Width
0.39 in
Max. Conductor Size
6 AWG Stranded/Solid
Stud Size
#10
Length
1.24 in
Width
0.43 in
Min. Conductor Size
14 AWG Stranded/Solid
Length (Straight Wireway)
1.24 in
Overall Depth
3/8 in
Strip Length
5/8 in
Tongue Thickness
0.07 in
For Stranded Copper Wire Size - Maximum
6 AWG
For Stranded Copper Wire Size - Minimum
14 AWG
Overall Width
0.43 in
Overall Length
1.24 in
Conductor Size
14-6 AWG
Conductor - Copper Str Size
14 AWG;12 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG
Dimension - Pad Width inch
0.39 in
Dimension - B Length fraction
7/16 in
Conductor - Copper Str Size Range
14 AWG-6 AWG
Dimension - Hole Size inch
0.20 in
Dimension - L Length Overall mm
31 mm
Conductor - Copper Solid Size Range
14 AWG-6 AWG
Dimension - Bolt Size fraction
#10
Dimension - B Length inch
0.43 in
Dimension - Strip Length inch
45054
Dimension - Length Overall inch
1.24 in
Dimension - N inch
0.22 in
Dimension - Stud Size inch
#10
Conductor - Copper Solid Size
14 AWG;13 AWG;12 AWG;11 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG
Dimension - Screw Size inch
44930
Dimension - Hole Size mm
5 mm
Description
Mechanical Connector, For Conductor Material Copper, For Stranded Copper Wire Size - Minimum 14 AWG, For Stranded Copper Wire Size - Maximum 6 AWG, For Stud Size #10, Head Style Slotted, Number of Holes 1, Hole Diameter 0.2 in, Hole Spacing Not Applicable, Body Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 1, Number of Terminations 1, Tongue Length Not Applicable, Tongue Width 0.39 in, Tongue Thickness 0.07 in, Connector Type Terminal
