  11. One-Hole Compression Lug, 1/0 AWG Max, 3/8 in Stud, Long Barrel, Copper, None

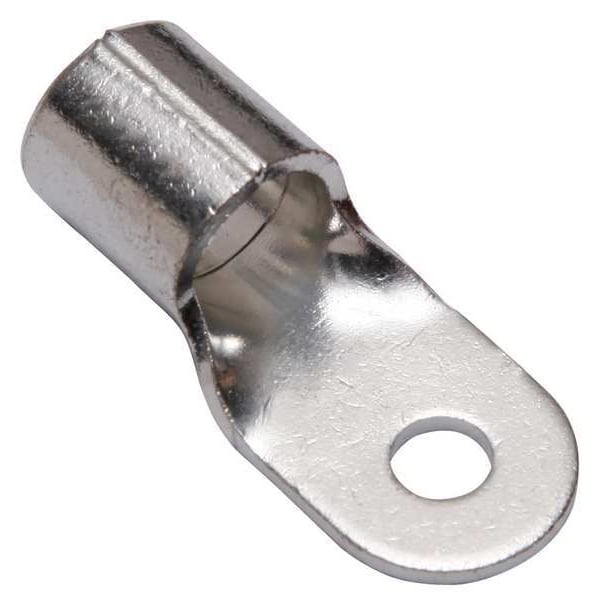

Burndy One-Hole Compression Lug, 1/0 AWG Max, 3/8 in Stud, Long Barrel, Copper, None YAD25M10E38 - main

One-Hole Compression Lug, 1/0 AWG Max, 3/8 in Stud, Long Barrel, Copper, None

  • Mfr # YAD25M10E38

  • Zoro # G6178374

product price: $5.69
/ea

Key Features

For Wire Size
1/0 AWG
For Conductor Material
Copper
For Stud Size
3/8 in
Material
Copper
Barrel Size
Long
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
YAD25M10E38
Zoro #
G6178374
UPC #
781810668146
Country of Origin
Taiwan, Province of China

Dimensions

For Wire Size
1/0 AWG
For Stud Size
3/8 in
Barrel Size
Long
Tongue Width
0.71 in
Tongue Width - Wire Connector
0.71 in
Barrel Length
0.63 in
Width
0.71"
Cable Size
1/0 AWG
Overall Length
1.7 in
Length
1.69"
Barrel Outside Diameter
0.57 in
Minimum Wire Size
1/0 AWG
Tongue Length
1.07 in
Hole Diameter
0.41 in
Maximum Wire Size
1/0 AWG
Tongue Thickness
0.07 in
Strip Length
3/4 in
Conductor - Copper Str Size
1/0 AWG
Conductor Size
1/0 AWG
Dimension - Hole Size inch
0.41 in
Dimension - Outside Diameter inch
0.57 in
Dimension - Bolt Size fraction
2023-03-08
Dimension - Length Overall inch
1.70 in
Dimension - Strip Length inch
44989
Dimension - L Length Overall mm
43 mm
Dimension - Pad Width inch
0.71 in
Dimension - B Length inch
0.63 in
Dimension - Stud Size inch
44993

Details

Item
One-Hole Compression Lug
For Conductor Material
Copper
Material
Copper
Inspection Hole
No
Die Code
1019
Color Code
None
Standards
UL 467
Tongue Style
Ring
Seam
Brazed
Connection Material
Tin Plater Copper
Insulation Color
Bare
Plate Material
Tin
Hole Center to End
1.340"
Connector Type
YAD
Wire Range
1/0 AWG
Peep Hole
No
Insulation Type
Non-Insulated
Max. Voltage
600 V
Max. Temp.
302 Degrees F
Termination Style
Crimp
Contact Finish
Tin
Insulation Coverage
None
Maximum Operating Temperature
302 Degrees F
Terminal Shape
Ring Tongue
Minimum Operating Temperature
302 Degrees F
Barrel Style
Brazed
Maximum Voltage
600 V
Contact Material
Copper
Hole Spacing
0.71 in
RoHS Compliant
Yes
Seam Style
Brazed
Compatible with Series
PAT4PC834, PAT750, PAT81KFT, Y35, Y39, Y4PC834, Y750, Y81KFT
Compatible with Product Type
Code, Flex Cable
Special Features
Durable Long Lasting Corrosion Resistance, Vibration Resistance and Tensile Strength, Provide Execellent High Conductivity Connections
Insulation Material
None
Industry Standard(s)
UL467
Physical Attribute - Tongue Type
Ring
Voltage - Maximum
600 V
Type
Ring Tongue
Plating Type
Tin
Feature - Barrel Type
Long
Plated
Y
Conductor Type
CU C Str-SizeCU C Flex-Size
Item Type
3B
Trade Name
HYLUGâ„¢
Application
The YAD uninsulated OEM lug terminal is constructed of electrolytic copper

Description

Ring Terminal, Insulation Color Bare, Insulation Coverage None, Insulation Material None, Maximum Temperature 302 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 1/0 AWG, Maximum Wire Size 1/0 AWG, Termination Style Crimp, Tongue Width 0.71 in, Contact Finish Tin, Contact Material Copper, Standards UL 467, Barrel Length 0.63 in, Barrel Outside Diameter 0.57 in, Barrel Size Long, Barrel Style Brazed, Compatible Grainger Part Number 22P219, 22P221, Compatible with Product Type Code, Flex Cable
