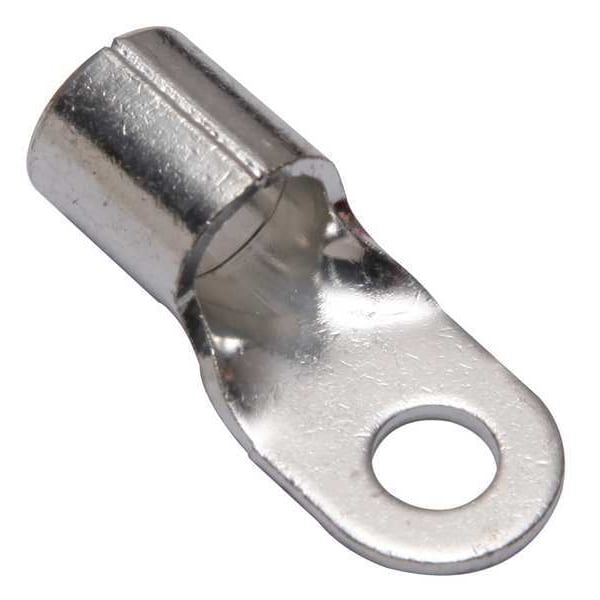

  11. One-Hole Compression Lug, 1/0 AWG Max, 5/16 in Stud, Long Barrel, Copper, None
Burndy One-Hole Compression Lug, 1/0 AWG Max, 5/16 in Stud, Long Barrel, Copper, None YAD25M8E516 - main

One-Hole Compression Lug, 1/0 AWG Max, 5/16 in Stud, Long Barrel, Copper, None

  • Mfr # YAD25M8E516

  • Zoro # G6105757

product price: $5.99
/ea

Key Features

For Wire Size
1/0 AWG
For Conductor Material
Copper
For Stud Size
5/16 in
Material
Copper
Barrel Size
Long
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
YAD25M8E516
Zoro #
G6105757
UPC #
781810668191
Country of Origin
Taiwan, Province of China

Dimensions

For Wire Size
1/0 AWG
For Stud Size
5/16 in
Barrel Size
Long
Tongue Width
0.75 in
Tongue Width - Wire Connector
0.71 in
Width
0.71"
Barrel Length
0.63 in
Overall Length
1.76 in
Length
1.69"
Cable Size
1/0 AWG
Minimum Wire Size
1/0 AWG
Tongue Length
0.13 in
Barrel Outside Diameter
0.57 in
Tongue Thickness
0.07 in
Strip Length
3/4 in
Hole Diameter
0.33 in
Maximum Wire Size
1/0 AWG
Conductor Size
1/0 AWG
Conductor - Copper Str Size
1/0 AWG
Dimension - Strip Length inch
44989
Dimension - Length Overall inch
1.76 in
Dimension - Pad Width inch
0.75 in
Dimension - B Length inch
0.63 in
Dimension - Stud Size inch
45062
Dimension - L Length Overall mm
43 mm
Dimension - Outside Diameter inch
0.57 in
Dimension - Hole Size inch
0.33 in
Dimension - Bolt Size fraction
2023-05-16

Details

Item
One-Hole Compression Lug
For Conductor Material
Copper
Material
Copper
Inspection Hole
No
Die Code
1019
Color Code
None
Standards
UL 467
Peep Hole
No
Connector Type
YAD
Max. Voltage
600 V
Seam
Brazed
Insulation Color
Bare
Tongue Style
Ring
Wire Range
1/0 AWG
Hole Center to End
1.340"
Connection Material
Tin Plater Copper
Max. Temp.
302 Degrees F
Plate Material
Tin
Insulation Type
Non-Insulated
Maximum Operating Temperature
302 Degrees F
Insulation Coverage
None
Terminal Shape
Ring Tongue
Minimum Operating Temperature
302 Degrees F
Special Features
Durable Long Lasting Corrosion Resistance, Vibration Resistance and Tensile Strength, Provide Execellent High Conductivity Connections
Termination Style
Crimp
RoHS Compliant
Yes
Contact Finish
Tin
Compatible with Series
PAT4PC834, PAT81KFT, Y4PC834, Y81KFT
Hole Spacing
0.71 in
Seam Style
Brazed
Insulation Material
None
Contact Material
Copper
Compatible with Product Type
Code, Flex Cable
Compatible Manufacturer Model Number
PAT4PC834-18, PAT81KFT-18V
Maximum Voltage
600 V
Barrel Style
Brazed
Trade Name
HYLUGâ„¢
Physical Attribute - Tongue Type
Ring
Application
The YAD uninsulated OEM lug terminal is constructed of electrolytic copper
Voltage - Maximum
600 V
Plated
Y
Feature - Barrel Type
Long
Type
Ring Tongue
Conductor Type
CU C Str-SizeCU C Flex-Size
Industry Standard(s)
UL467
Item Type
3B
Plating Type
Tin

Description

Ring Terminal, Insulation Color Bare, Insulation Coverage None, Insulation Material None, Maximum Temperature 302 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 1/0 AWG, Maximum Wire Size 1/0 AWG, Termination Style Crimp, Tongue Width 0.75 in, Contact Finish Tin, Contact Material Copper, Standards UL 467, Barrel Length 0.63 in, Barrel Outside Diameter 0.57 in, Barrel Size Long, Barrel Style Brazed, Compatible Grainger Part Number 22P219, 22P221
