  6. One-Hole Compression Lug, 2/0 AWG Max, 1/2 in Stud, Short Barrel, Copper, Orange

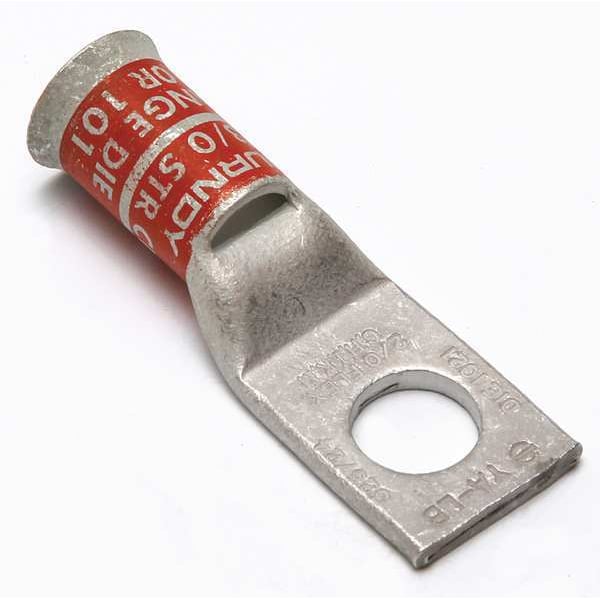

Burndy One-Hole Compression Lug, 2/0 AWG Max, 1/2 in Stud, Short Barrel, Copper, Orange YA27LB - main

One-Hole Compression Lug, 2/0 AWG Max, 1/2 in Stud, Short Barrel, Copper, Orange

  • Mfr # YA27LB

  • Zoro # G4697716

product price:  $15.15
/ea

Key Features

For Wire Size
2/0 AWG
For Conductor Material
Copper
For Stud Size
1/2 in
Material
Copper
Barrel Size
Short
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
YA27LB
Zoro #
G4697716
UPC #
781810555965
Country of Origin
United States

Dimensions

For Wire Size
2/0 AWG
For Stud Size
1/2 in
Barrel Size
Short
Tongue Width
0.91 in
Length
2.61"
Width
0.91"
Barrel Length
Short
Cable Size
2/0 AWG
Length (Straight Wireway)
2.61 in
Dimension - Length Overall inch
2.61 in
Conductor - Copper Str Size
3/0 AWG
Dimension - Z inch
0.55 in
Conductor - Copper Flex M Size
2/0 AWG
Dimension - Outside Diameter inch
0.62 in
Dimension - B Length fraction
1 in
Conductor - Copper Flex K Size
2/0 AWG
Dimension - Hole Size mm
13 mm
Dimension - Hole Size fraction
1 to 2
Dimension - B Length inch
0.99 in
Dimension - Bolt Size inch
0.5
Dimension - Stud Size fraction
1 to 2
Conductor - Copper Str Size Range
3/0 AWG
Dimension - Hole Size inch
0.53 in
Dimension - Bolt Hole Size inch
0.52 in
Thickness - Pad
0.12 in
Conductor - Copper Flex G Size
2/0 AWG
Conductor - Copper Flex H Size
2/0 AWG
Conductor - Copper Flex I Size
2/0 AWG
Conductor - Copper Str Navy Size
150 (61) Navy
Dimension - Bolt Size fraction
1 to 2
Dimension - N inch
0.53 in
Dimension - Pad Width inch
0.91 in
Dimension - L Length Overall mm
66 mm
Conductor Size
3/0 AWG
Dimension - Thread Size
1 to 2
Dimension - Strip Length inch
42370

Details

Item
One-Hole Compression Lug
For Conductor Material
Copper
Material
Copper
Tongue Angle
Straight
Inspection Hole
Yes
Die Code
1,021
Color Code
Orange
Standards
CSA Certified, UL 486A-486B, UL Listed
Peep Hole
Yes
Tongue Style
Standard
Connector Type
Short Barrel
Plate Material
Electro Tin
Hole Center to End
0.53 in
Application
For Flex Conductor
Feature - Barrel Type
Standard
Trade Name
HYLUGâ„¢
Plated
Y
Finish Type
Tin-Plated
Voltage - Maximum
35000
Type
Standard Belled Barrel, Tin Plated
Conductor Type
CODE
Conductor - Material
Copper
Industry Standard(s)
UL468A-468B
Feature - Barrel Style
Belled
Voltage Rating
35 kV
Die Index
14
UL Listed
Yes
Physical Attribute - Number of Holes
1
Certification - CSA Approved
Yes
Physical Attribute - Tongue Angle
Straight
Plating Type
Tin - Electro Plated
Physical Attribute - Tongue Type
Standard
Rating - Minimum Voltage
600
Rating - KVA
35 kV
Number of Holes
1

Description

Compression Lug, Barrel Size Standard, Color Code Orange, Die Code 1,021, For Stud Size 1/2 in, For Stranded Copper Wire Size - Maximum 3/0 AWG, Hole Center to Center Not Applicable, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Standards CSA Certified, UL 486A-486B, UL Listed, Connector Type Belled Straight Barrel, Contact Finish Tin, For Wire Size 2/0 AWG, 3/0 AWG, For Wire Type Stranded
