  11. One-Hole Compression Lug, 3/0 AWG Max, 3/8 in Stud, Long Barrel, Copper, None

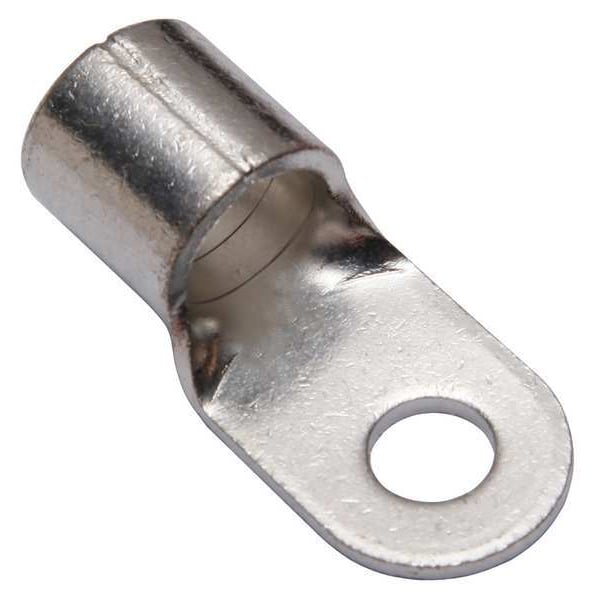

Burndy One-Hole Compression Lug, 3/0 AWG Max, 3/8 in Stud, Long Barrel, Copper, None YAD27M10E38 - main

One-Hole Compression Lug, 3/0 AWG Max, 3/8 in Stud, Long Barrel, Copper, None

  • Mfr # YAD27M10E38

  • Zoro # G6077671

product price: $13.39
/ea

Key Features

Cable Size
3/0 AWG
Connector Type
YAD
Width
0.95"
Material
Copper
Length
2.13"
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
YAD27M10E38
Zoro #
G6077671
UPC #
781810668269
Country of Origin
Taiwan, Province of China

Dimensions

Cable Size
3/0 AWG
Width
0.95"
Length
2.13"
Tongue Width - Wire Connector
0.95 in
Barrel Length
0.79 in
Overall Length
2.13 in
Barrel Outside Diameter
0.79 in
Tongue Length
1.34 in
Maximum Wire Size
3/0 AWG
Strip Length
7/8 in
Minimum Wire Size
3/0 AWG
Tongue Thickness
0.1 in
Hole Diameter
0.41 in
Barrel Size
Long
For Wire Size
3/0 AWG
Tongue Width
0.95 in
Dimension - L Length Overall mm
54 mm
Dimension - Length Overall inch
2.13 in
Dimension - Hole Size inch
0.41 in 0.51 in
Dimension - Stud Size inch
3/8 1/2
Dimension - Pad Width inch
0.95 in
Conductor - Copper Str Size
3/0 AWG
Dimension - Outside Diameter inch
0.79 in
Dimension - Bolt Size fraction
2023-03-08
Dimension - Strip Length inch
45115
Dimension - B Length inch
0.79 in
Conductor Size
3/0 AWG
For Stud Size
3/8 in

Details

Connector Type
YAD
Material
Copper
Color Code
None
Tongue Style
Ring
Insulation Color
Bare
Insulation Type
Non-Insulated
Connection Material
Tin Plater Copper
Die Code
1023
Wire Range
3/0 AWG
Max. Temp.
302 Degrees F
Peep Hole
No
Max. Voltage
600 V
Hole Center to End
1.650"
Item
One-Hole Compression Lug
Seam
Brazed
Plate Material
Tin
Standards
UL 467
Barrel Style
Brazed
Special Features
Durable Long Lasting Corrosion Resistance, Vibration Resistance and Tensile Strength, Provide Execellent High Conductivity Connections
Hole Spacing
0.86 in
Terminal Shape
Ring Tongue
Insulation Material
None
Contact Finish
Tin
Minimum Operating Temperature
302 Degrees F
Compatible with Product Type
Code, Flex Cable
Compatible with Series
PAT4PC834, PAT750, PAT81KFT, Y35, Y39, Y4PC834, Y750, Y81KFT
Termination Style
Crimp
Contact Material
Copper
Insulation Coverage
None
Maximum Voltage
600 V
RoHS Compliant
Yes
Seam Style
Brazed
Maximum Operating Temperature
302 Degrees F
Trade Name
HYLUGâ„¢
Type
Ring Tongue
Application
The YAD uninsulated OEM lug terminal is constructed of electrolytic copper
Physical Attribute - Tongue Type
Ring
Feature - Barrel Type
Long
Plating Type
Tin
Item Type
3B
Industry Standard(s)
UL467
Voltage - Maximum
600 V
Plated
Y
Conductor Type
CU C Str-SizeCU C Flex-Size
For Conductor Material
Copper
Inspection Hole
No
Number of Holes
1

Description

Ring Terminal, Insulation Color Bare, Insulation Coverage None, Insulation Material None, Maximum Operating Temperature 302 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 3/0 AWG, Maximum Wire Size 3/0 AWG, Termination Style Crimp, Tongue Width 0.95 in, Contact Finish Tin, Contact Material Copper, Standards UL 467, Barrel Length 0.79 in, Barrel Outside Diameter 0.79 in, Barrel Size Long, Barrel Style Brazed, Compatible Grainger Part Number 22P219, 22P221
