  11. One-Hole Compression Lug, 300 kcmil Max, 1/2 in Stud, Long Barrel, Copper, None

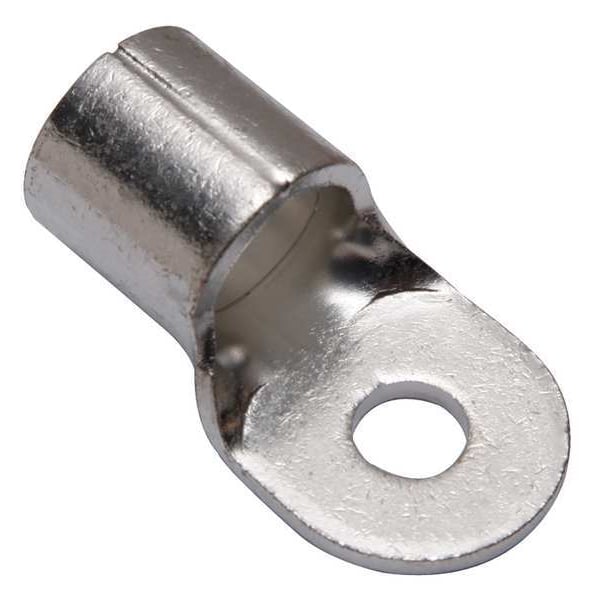

Burndy One-Hole Compression Lug, 300 kcmil Max, 1/2 in Stud, Long Barrel, Copper, None YAD31M12E12 - main

One-Hole Compression Lug, 300 kcmil Max, 1/2 in Stud, Long Barrel, Copper, None

  • Mfr # YAD31M12E12

  • Zoro # G6140346

product price: $31.69
/ea

Key Features

Cable Size
250 Kcmil to 300 kcmil
Connector Type
YAD
Width
1.42"
Material
Copper
Length
2.68"
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
YAD31M12E12
Zoro #
G6140346
UPC #
781810668481
Country of Origin
Taiwan, Province of China

Dimensions

Cable Size
250 Kcmil to 300 kcmil
Width
1.42"
Length
2.68"
Overall Length
2.68 in
Tongue Width - Wire Connector
1.42 in
Barrel Length
1.1 in
Barrel Size
Long
Minimum Wire Size
300 kcmil
Tongue Length
1.58 in
For Wire Size
300 kcmil
Strip Length
1 1/4 in
Tongue Thickness
0.14 in
Maximum Wire Size
350 kcmil
Tongue Width
1.42 in
Hole Diameter
0.51 in
Barrel Outside Diameter
1.12 in
Dimension - Stud Size inch
1 to 2
Dimension - Hole Size inch
0.51 in
Dimension - Bolt Size fraction
1 to 2
Dimension - B Length inch
1.10 in
Conductor - Copper Str Size
300 kcmil;350 kcmil
Dimension - Outside Diameter inch
1.12 in
Dimension - Length Overall inch
2.68 in
Dimension - L Length Overall mm
68 mm
Conductor - Copper Str Size Range
300-350 kcmil
Dimension - Strip Length inch
37987
Dimension - Pad Width inch
1.42 in
For Stud Size
1/2 in

Details

Connector Type
YAD
Material
Copper
Color Code
None
Peep Hole
No
Max. Voltage
600 V
Max. Temp.
302 Degrees F
Insulation Color
Bare
Seam
Brazed
Connection Material
Tin Plater Copper
Insulation Type
Non-Insulated
Tongue Style
Ring
Item
One-Hole Compression Lug
Wire Range
350 kcmil
Plate Material
Tin
Hole Center to End
1.970"
Standards
UL 467
Contact Finish
Tin
Terminal Shape
Ring Tongue
Insulation Material
None
Special Features
Durable Long Lasting Corrosion Resistance, Vibration Resistance and Tensile Strength, Provide Execellent High Conductivity Connections
RoHS Compliant
Yes
Contact Material
Copper
Compatible with Product Type
Code, Flex Cable
Maximum Operating Temperature
302 Degrees F
Seam Style
Brazed
Hole Spacing
0.87 in
Barrel Style
Brazed
Termination Style
Crimp
Compatible with Series
PAT46, PAT4PC834, PAT750, PAT81KFT, Y46, Y4PC834, Y750, Y81KFT
Maximum Voltage
600 V
Insulation Coverage
None
Minimum Operating Temperature
302 Degrees F
Trade Name
HYLUGâ„¢
Conductor Type
CU C Str-SizeCU C Flex-Size
Plated
Y
Physical Attribute - Tongue Type
Ring
Plating Type
Tin
Feature - Barrel Type
Long
Industry Standard(s)
UL467
Type
Ring Tongue
Application
The YAD uninsulated OEM lug terminal is constructed of electrolytic copper
Item Type
3B
Voltage - Maximum
600 V
For Conductor Material
Copper
Inspection Hole
No

Description

Ring Terminal, Insulation Color Bare, Insulation Coverage None, Insulation Material None, Maximum Temperature 302 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 300 kcmil, Maximum Wire Size 350 kcmil, Termination Style Crimp, Tongue Width 1.42 in, Contact Finish Tin, Contact Material Copper, Standards UL 467, Barrel Length 1.1 in, Barrel Outside Diameter 1.12 in, Barrel Size Long, Barrel Style Brazed, Compatible Grainger Part Number 22P219, 22P221
