  11. One-Hole Compression Lug, 500 kcmil Max, 1/2 in Stud, Long Barrel, Copper, None

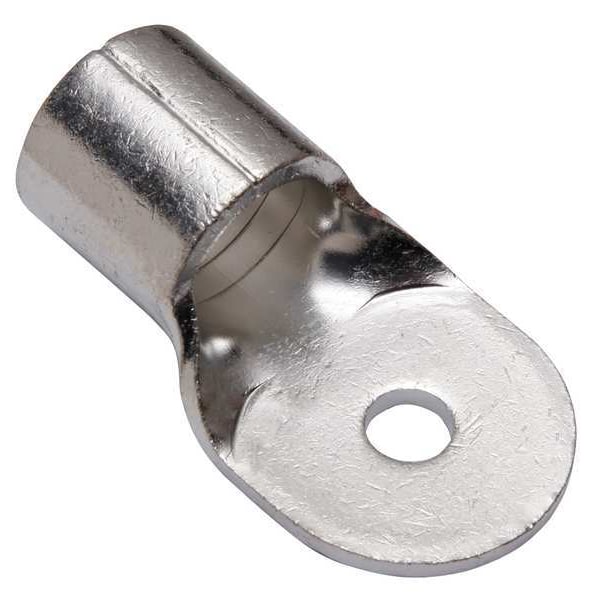

Burndy One-Hole Compression Lug, 500 kcmil Max, 1/2 in Stud, Long Barrel, Copper, None YAD36M12E12 - main

One-Hole Compression Lug, 500 kcmil Max, 1/2 in Stud, Long Barrel, Copper, None

  • Mfr # YAD36M12E12

  • Zoro # G6083201

product price: $80.17
/ea
Free Shipping & Returns

Key Features

For Wire Size
500 kcmil
For Conductor Material
Copper
For Stud Size
1/2 in
Material
Copper
Barrel Size
Long
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
YAD36M12E12
Zoro #
G6083201
UPC #
781810668566
Country of Origin
Taiwan, Province of China

Dimensions

For Wire Size
500 kcmil
For Stud Size
1/2 in
Barrel Size
Long
Tongue Width
1.97 in
Length
3.7"
Tongue Width - Wire Connector
1.97 in
Cable Size
500 Kcmil to 600 kcmil
Overall Length
3.77 in
Barrel Length
1.38 in
Width
1.97"
Barrel Outside Diameter
1.44 in
Tongue Thickness
0.18 in
Maximum Wire Size
600 kcmil
Tongue Length
2.39 in
Strip Length
1 1/2 in
Minimum Wire Size
500 kcmil
Hole Diameter
0.51 in
Dimension - Hole Size inch
0.51 in 0.67 in
Dimension - Pad Width inch
1.97 in
Dimension - Length Overall inch
3.77 in
Conductor - Copper Str Size Range
500-600 kcmil
Dimension - Stud Size inch
1/2 5/8
Dimension - B Length inch
1.38 in
Dimension - Strip Length inch
37257
Conductor - Copper Str Size
500 kcmil;550 kcmil;600 kcmil
Dimension - Outside Diameter inch
1.44 in
Dimension - Bolt Size fraction
1 to 2
Dimension - L Length Overall mm
96 mm

Details

Item
One-Hole Compression Lug
For Conductor Material
Copper
Material
Copper
Inspection Hole
No
Color Code
None
Standards
UL 467
Insulation Color
Bare
Max. Voltage
600 V
Connection Material
Tin Plater Copper
Seam
Brazed
Connector Type
YAD
Peep Hole
No
Tongue Style
Ring
Plate Material
Tin
Hole Center to End
2.720"
Wire Range
600 kcmil
Insulation Type
Non-Insulated
Max. Temp.
302 Degrees F
Minimum Operating Temperature
302 Degrees F
Insulation Coverage
None
RoHS Compliant
Yes
Terminal Shape
Ring Tongue
Contact Finish
Tin
Compatible with Series
PAT46, PAT4PC834, PAT750, PAT81KFT, Y46, Y4PC834, Y750, Y81KFT
Compatible with Product Type
Code, Flex Cable
Contact Material
Copper
Seam Style
Brazed
Termination Style
Crimp
Insulation Material
None
Maximum Voltage
600 V
Hole Spacing
1.34 in
Maximum Operating Temperature
302 Degrees F
Barrel Style
Brazed
Special Features
Durable Long Lasting Corrosion Resistance, Vibration Resistance and Tensile Strength, Provide Execellent High Conductivity Connections
Voltage - Maximum
600 V
Application
The YAD uninsulated OEM lug terminal is constructed of electrolytic copper
Physical Attribute - Tongue Type
Ring
Industry Standard(s)
UL467
Plated
Y
Trade Name
HYLUGâ„¢
Plating Type
Tin
Item Type
3B
Conductor Type
CU C Str-SizeCU C Flex-Size
Type
Ring Tongue
Feature - Barrel Type
Long

Description

Ring Terminal, Insulation Color Bare, Insulation Coverage None, Insulation Material None, Maximum Temperature 302 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 500 kcmil, Maximum Wire Size 600 kcmil, Termination Style Crimp, Tongue Width 1.97 in, Contact Finish Tin, Contact Material Copper, Standards UL 467, Barrel Length 1.38 in, Barrel Outside Diameter 1.44 in, Barrel Size Long, Barrel Style Brazed, Compatible Grainger Part Number 22P219, 22P221
