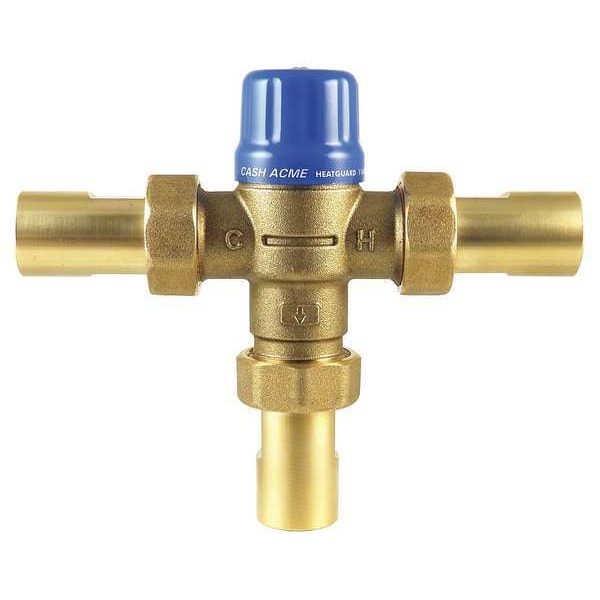

Thermostatic Mixing Valve, 1/2in., 230 psi
Mfr # HG110D
Zoro # G6209262
product price:Â
$
122.99
/ea
Free Shipping & Returns
Key Features
Inlet Size
1/2 in
Outlet Type
NPT
Inlet Type
NPT
Compliance
ASSE 1017, ASSE 1069, ASSE 1070, CSA B125.3, NSF 372, NSF 63
Overall Width
5 5/8 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- HG110D
- Zoro #
- G6209262
- UPC #
- 094726655545
- Country of Origin
- Australia
- Item
- Thermostatic Mixing Valve
- Outlet Type
- NPT
- Inlet Type
- NPT
- Compliance
- ASSE 1017, ASSE 1069, ASSE 1070, CSA B125.3, NSF 372, NSF 63
- Temp. Range
- 85 Degrees to 130 Degrees F
- Max. Pressure
- 230 psi
- Body Material
- Brass
- Standards
- ASSE, ASSE 1017, ASSE 1069, ASSE 1070, CSA, CSA B125.3, IAPMO, NSF/ANSI/CAN 372, NSF/ANSI/CAN 61
- Valve Type
- Thermostatic
- Inlet Temperature - Maximum Hot
- 180 Degrees F
- Inlet Connection Type - Cold
- NPT
- Inlet Temperature - Minimum Cold
- 39 Degrees F
- Operating Pressure - Maximum
- 230 psi
- Operating Temperature - Maximum Outlet
- 176 Degrees F
- Inlet Connection Type - Hot
- NPT
- Outlet Connection Type
- NPT
- For Media
- Water
- Inlet Temperature - Minimum Hot
- 120 Degrees F
- Operating Temperature - Minimum Outlet
- 85 Degrees F
- Inlet Temperature - Maximum Cold
- 80 Degrees F
Description
Thermostatic Mixing Valve, Body Material Brass, Inlet Type NPT, Outlet Type NPT, Inlet Size 1/2 in, Outlet Size 1/2 in, Temp. Range 85 Degrees to 130 Degrees F, Max. Pressure 230 psi, Overall Height 2 3/16 in, Overall Width 5 5/8 in, Standards ASSE, ASSE 1017, ASSE 1069, ASSE 1070, CSA, CSA B125.3, IAPMO, NSF/ANSI/CAN 372, NSF/ANSI/CAN 61, Compliance ASSE 1017, ASSE 1069, ASSE 1070, CSA B125.3, NSF 372, NSF 63
