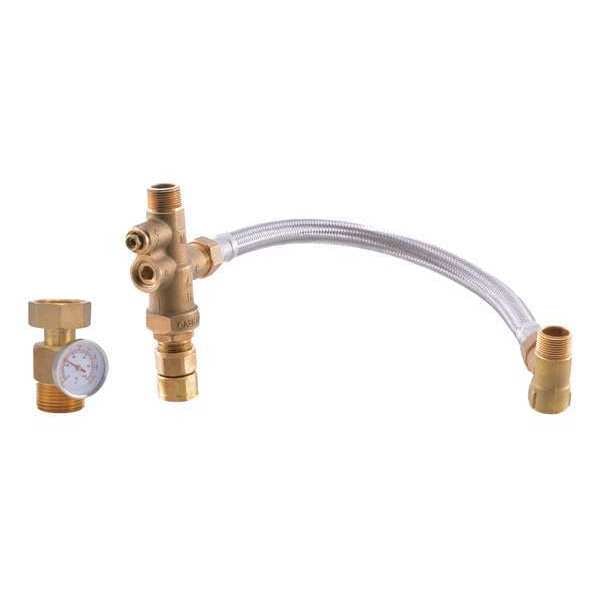

Thermostatic Mixing Valve, 3/4in., 150 psi
- Mfr # 24644
- Zoro # G6124894
product price:Â
$
160.99
/ea
Free Shipping & Returns
Key Features
Inlet Size
3/4 in
Outlet Type
NPT
Inlet Type
NPT
Overall Height
6 11/16 in
Temp. Range
90 Degrees to 130 Degrees F
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 24644
- Zoro #
- G6124894
- UPC #
- 697285246447
- Country of Origin
- Australia
- Item
- Thermostatic Mixing Valve
- Outlet Type
- NPT
- Inlet Type
- NPT
- Temp. Range
- 90 Degrees to 130 Degrees F
- Max. Pressure
- 150 psi
- Body Material
- Brass
- Compliance
- ASSE 1017, ASSE 1070 and CSA B125.3
- Includes
- Braided Hose, Temperature Gauge
- Standards
- ASSE 1017, ASSE 1070, CSA B125.3, IAPMO, NSF/ANSI/CAN 372, NSF/ANSI/CAN 61
- Valve Type
- Thermostatic
- Operating Temperature - Maximum Outlet
- 130 Degrees F
- Operating Pressure - Maximum
- 150 psi
- Inlet Connection Type - Cold
- NPSH
- Inlet Temperature - Maximum Hot
- 180 Degrees F
- Outlet Connection Type
- NPT
- Includes Temperature Gauge
- Temperature Gauge Included
- Inlet Temperature - Minimum Hot
- 120 Degrees F
- Inlet Connection Type - Hot
- NPT
- Inlet Temperature - Maximum Cold
- 80 Degrees F
- Inlet Temperature - Minimum Cold
- 39 Degrees F
- Operating Temperature - Minimum Outlet
- 90 Degrees F
- For Media
- Hot Water, Water
- Seal Material
- EPDM
Description
Thermostatic Mixing Valve, Body Material Brass, Inlet Type NPT, Outlet Type NPT, Inlet Size 3/4 in, Outlet Size 3/4 in, Temp. Range 90 Degrees to 130 Degrees F, Max. Pressure 150 psi, Overall Height 6 11/16 in, Overall Width 9 3/8 in, Includes Braided Hose, Temperature Gauge, Standards ASSE 1017, ASSE 1070, CSA B125.3, IAPMO, NSF/ANSI/CAN 372, NSF/ANSI/CAN 61, Compliance ASSE 1017, ASSE 1070 and CSA B125.3
