Shop CENTURY

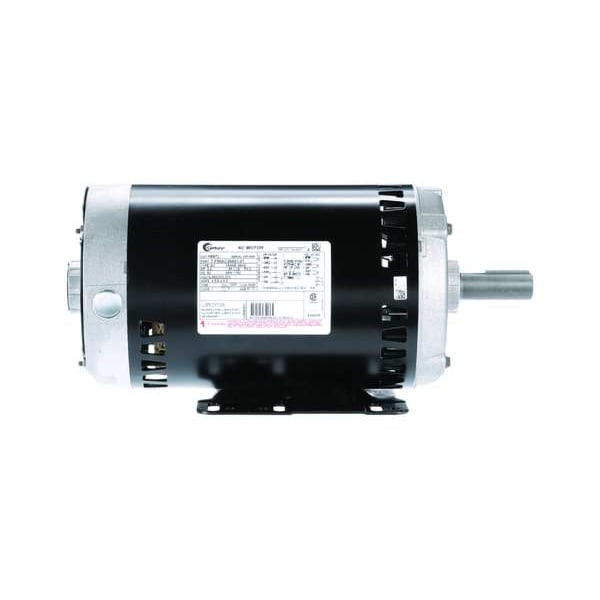

3-Phase Belt Drive Motor, 3 HP, 56HZ Frame, 200-230/460V AC Voltage, 1,750 Nameplate RPM

  • Mfr # H887L

  • Zoro # G4128257

product price:
$
471.99
/ea
Free Shipping & Returns

Key Features

Motor Design
3-Phase
Motor Enclosure Design
Open Dripproof
HP
3
No. of Speeds
1
RPM Range
1,701-1,800
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
H887L
Zoro #
G4128257
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
7/8 in
Overall Length
14 9/16 in
Shaft Length
2 5/16 in
Length Less Shaft
12 1/4 in
Body Dia.
6 1/2 in
Frame Size
56HZ
Shaft Diameter
7/8 in
Body Diameter
6.5 in

Details

Item
Belt Drive Motor
Motor Design
3-Phase
Motor Enclosure Design
Open Dripproof
HP
3
No. of Speeds
1
RPM Range
1,701-1,800
Nameplate RPM
1,750
Voltage
200-230/460V AC
Frame
56HZ
Motor Mounting Type
Rigid Base
Motor Thermal Protection
Auto
Motor Service Factor
1.15
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 200-230V AC, 200V AC
Phase
Three
Motor Application
HVAC/R
Motor Sub Application
Belt Drive Fan/Blower
Frame Material
Steel
Motor Shaft Rotation
CW/CCW
Footnotes
15
Motor Frame Material
Steel
Ins. Class
F
Full Load Amps
4.5/9.4-8.9 A
Mounting Stud Pattern
5 13/16 in x 5 13/16 in
Max. Ambient Temp.
104 Degrees F
Nominal Efficiency
83.1 %
Motor Mounting Position
All Angle
Standards
CSA, UL Recognized
Duty
Continuous
Hz
60 Hz
Motor Bearings
Ball
Usable @ 208V
Yes
Duty Cycle
Continuous
Weight
43 lb
Usable @ 200V
Yes
NEMA Design
J
Application
Fan/Blower
Motor Enclosure Type
Open Drip Proof
Nameplate Service Factor @ 60 Hz
1.15
Number of Speeds
1
Insulation Class
F
Full Load Current @ 60 Hz
9.0/4.5 A
Frequency
60 Hz
Bearing Type
Ball
Ambient Temperature - Maximum
40 Degrees C
Drive Type
Belt Drive
Product Type
Fan and Blower Motor
Mounting Position
All Angle

Description

The CENTURY - H887L is a Belt Drive Motor, a power transmission device that uses a belt to transfer rotational motion from one shaft to another. This motor is designed for use in various industrial applications where smooth and controlled power delivery is required. It's an essential component in many machinery systems across different industries.
Key features of the CENTURY - H887L include:
• Horsepower (HP) of 3 indicating its capacity to drive pneumatic tools efficiently.
• RPM Range: 1,701 - 1,800 suitable for diverse industry needs
• Voltage Compatibility:200V AC –230/460V AC suiting varying voltage levels
• A Motor Service Factor of 1.15, providing extra power when needed for demanding applications.
• Open Dripproof Motor Enclosure Design offering better cooling but less protection against dust and moisture.
• Rigid Base Mounting Type securing the motor onto a compressor effectively
• Ball type Motor Bearings enhancing operational efficiency and lifespan of your pneumatic tools
• Auto Thermal Protection preventing overheating by automatically shutting down when excessive heat is detected
• Maximum Ambient Temperature:104 Degrees F
• Nominal Efficiency:83.1% indicating filtration efficiency
• Duty Cycle :Continuous enabling non-stop operation in high-demand settings
• CSA & UL Recognized Standards ensuring quality,safety,and efficiency compliance
