  6. Agricultural Fan Motor, Capacitor-Start/Run, 1 HP, 115/230V AC, 1,725 Nameplate RPM, 56 Frame

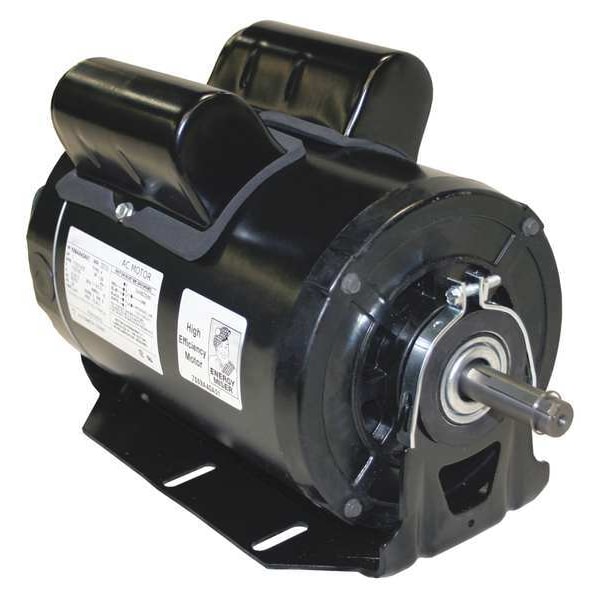

Century Agricultural Fan Motor, Capacitor-Start/Run, 1 HP, 115/230V AC, 1,725 Nameplate RPM, 56 Frame PD6104AV2 - main

Agricultural Fan Motor, Capacitor-Start/Run, 1 HP, 115/230V AC, 1,725 Nameplate RPM, 56 Frame

  • Mfr # PD6104AV2

  • Zoro # G1652061

product price:  $479.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Capacitor-Start/Run
Phase
Single
HP
1
RPM Range
1,701-1,800
Voltage
115/230V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
PD6104AV2
Zoro #
G1652061
UPC #
-
Country of Origin
Mexico

Dimensions

Length Less Shaft
10 3/4 in
Shaft Length
1 7/8 in
Shaft Dia.
5/8 in
Overall Length
12 5/8 in

Details

Item
Agricultural Fan Motor
Motor Design
Capacitor-Start/Run
Phase
Single
HP
1
RPM Range
1,701-1,800
Voltage
115/230V AC
Frame
56
Motor Service Factor
1.3
Motor Thermal Protection
Auto
Motor Enclosure Design
Totally Enclosed Air-Over
Nameplate RPM
1,725
Motor Application
Farm Duty
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Mounting Type
Cradle Base
Motor Shaft Design
Keyed
Motor Sub Application
Belt Drive Fan/Blower
Motor Shaft Rotation
CW/CCW
Standards
CSA Certified, UL Recognized
Duty
Continuous
Ins. Class
B
Capacitor Required
Yes
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Max. Ambient Temperature
40 Degrees C
Frame Material
Rolled steel
Hz
60/50 Hz
Motor Bearings
Ball
Full Load Amps
9.0/4.5 A
Item - Farm Duty Motors
Agricultural Fan Motor
Finish
Enamel
Includes
Gasketed Wiring Compartment Cover
No. of Speeds
1
Weight
42 lb
Duty Cycle
Continuous
Full Load Amps @ 50Hz
9.0/4.5 A
Usable @ 200V
Yes
RPM @ 50Hz
1,425
Voltage @ 50Hz
230V AC
Max. Ambient Temp.
40 Degrees C
HP @ 50Hz
1
Usable @ 208V
Yes
Application
Replacement Use in Agricultural Exhaust Fans

Description

Farm Duty Motor, Single Phase, Motor Design Capacitor-Start/Run, 1 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 9.0/4.5 A, 56 Frame, Usable @ 208V Usable at 208V, Usable @ 200V Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.3, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Cradle Base
