Shop CENTURY

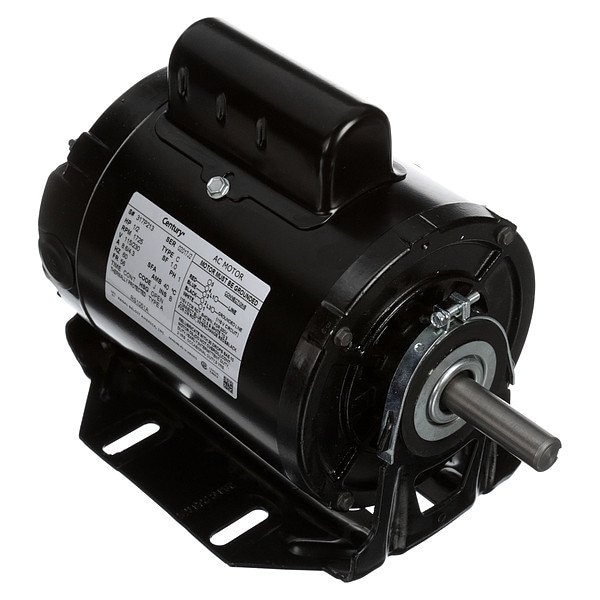

Capacitor-Start/Run Fan and Blower Motor, 1/2 HP, 56 Frame, 115/230V AC Voltage, No. of Speeds: 1

  • Mfr # RS1051A

  • Zoro # G309440009

product price:
$
328.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Capacitor-Start/Run
Motor Enclosure Design
Open Enclosed
HP
1/2
No. of Speeds
1
RPM Range
0-1,725
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
RS1051A
Zoro #
G309440009
UPC #
-
Country of Origin
Mexico
Item
Fan and Blower Motor
Motor Design
Capacitor-Start/Run
Motor Enclosure Design
Open Enclosed
HP
1/2
No. of Speeds
1
RPM Range
0-1,725
Nameplate RPM
1,725
Voltage
115/230V AC
Frame
56
Motor Mounting Type
Resilient Base
Motor Thermal Protection
Auto
Motor Service Factor
1
Voltage Compatibility
115/230V AC
Phase
Single
Motor Application
General Application
Motor Sub Application
General Purpose
Ins. Class
B
Max. Ambient Temp.
104 Degrees F
Motor Mounting Position
Vertical/Horizontal
Motor Shaft Design
Standard 56 extension
Motor Frame Material
Steel
Hz
60 Hz
Motor Shaft Rotation
CW/CCW
Full Load Amps
8.6/4.3 A
Standards
CSA
Motor Bearings
Sleeve
Weight
17 lb
Duty Cycle
Continuous
Usable @ 208V
Yes
Bearing Type
Sleeve
Ambient Temperature - Maximum
40 Degrees C
Insulation Class
B
Frequency
60 Hz
Application
Fan/Blower
Number of Speeds
1
Product Type
Fan and Blower Motor
Duty
Continuous
Drive Type
Belt Drive
Nameplate Service Factor @ 60 Hz
1
Frame Material
Steel
Motor Enclosure Type
Open
Mounting Position
All Angle
Full Load Current @ 60 Hz
8.6/4.3 A

Description

Fan and Blower Motor, Single Phase, Motor Design Capacitor-Start/Run, 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, 8.6/4.3 A Full Load Amps, 56 Frame, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open, Motor Mounting Type Cradle Base, Motor Frame Material Steel
