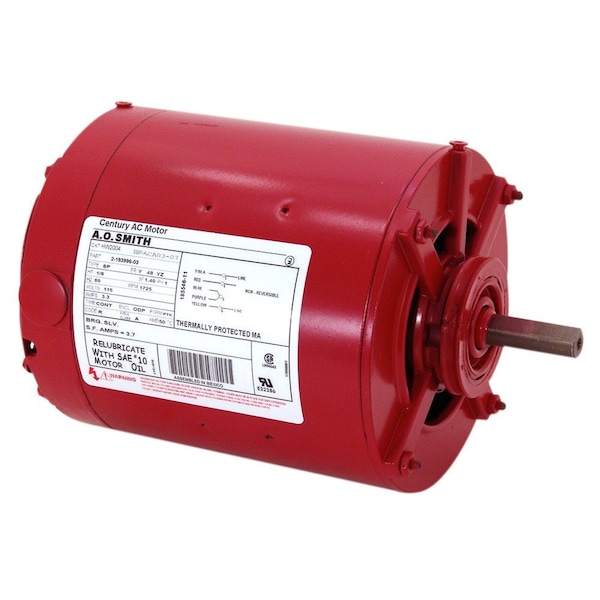

Circulator Pump Motor 1/8 HP 1800 RPM 48YZ SP
Mfr # HW2004L
Zoro # G923931259
product price:Â
$
200.99
/ea
Free Shipping & Returns
Key Features
Motor Frame Material
Rolled Steel
Nameplate RPM
1,725 RPM
Motor Enclosure Design
ODP
Hz
60
Frame
48Z
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- HW2004L
- Zoro #
- G923931259
- UPC #
- -
- Country of Origin
- Mexico
Details
- Motor Frame Material
- Rolled Steel
- Nameplate RPM
- 1,725 RPM
- Motor Enclosure Design
- ODP
- Hz
- 60
- Frame
- 48Z
- Motor Bearings
- Sleeve
- HP
- 0.13
- Voltage
- 115 V
- Motor Shaft Rotation
- CWLE
- Full Load Amps
- 2.8 A
Description
Century HW2004L 1/8 HP, 1800 RPM circulator pump motor (48YZ frame) with flat shaft 0.500 in diameter and 1.56 in extension. Service factor 1.4, Class B insulation rated for 50 DegC ambient, four poles, 60 Hz, continuous duty and across-the-line starting; CSA certified and UL recognized.
