Shop CENTURY

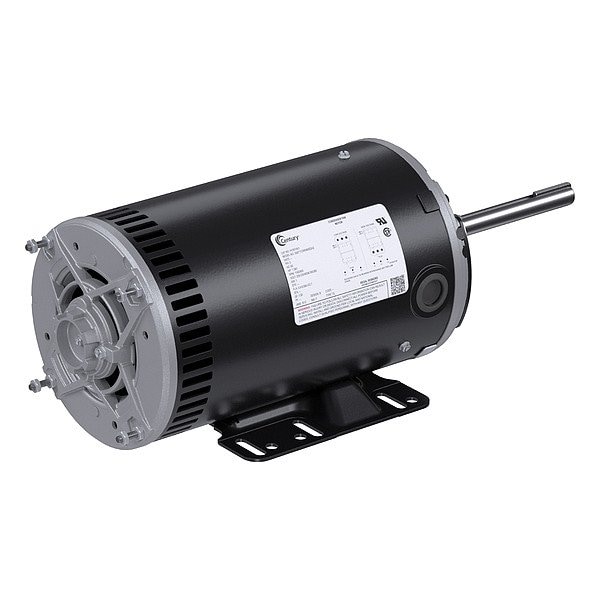

Condenser Fan Motor, 1 1/2 hp

  • Mfr # 056T11ORR40002A2

  • Zoro # G911931056

product price:  $908.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
HP
1 1/2
RPM Range
1,101-1,200
Nameplate RPM
1,140/950
Voltage
230/460; 190/380
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
056T11ORR40002A2
Zoro #
G911931056
UPC #
786674076151
Country of Origin
Mexico

Dimensions

Overall Length
18 1/32 in
Length Less Shaft
12 1/32 in
Shaft Dia.
5/8 in
Body Dia.
6 5/8 in
Shaft Length
6 in
Body Diameter
6.6 in
Shaft Diameter
5/8 in
Frame Size
56HZ
Wire Rope Length
18 1/32 in

Details

Item
Condenser Fan Motor
Motor Design
Three-Phase
HP
1 1/2
RPM Range
1,101-1,200
Nameplate RPM
1,140/950
Voltage
230/460; 190/380
Frame
56HZ
Motor Mounting Type
Lug
Phase
Three
Motor Enclosure Design
Open Air-Over
Motor Mounting Position
Vertical Shaft Up
Features
Double Sealed Ball Bearings are Pre-Lubricated with a Special Formulation for Moisture Resistance and Provide Extra-Long Life
Hz
60 Hz
Motor Shaft Design
Flat
No. of Speeds
1
Motor Shaft Rotation
CW/CCW
Ins. Class
F
Max. Ambient Temp.
70 Degrees C
Motor Application
HVAC/R
Standards
CSA Certified, UL Listed
Duty
Continuous
Motor Bearings
Ball
Voltage Compatibility
190V AC, 230V AC, 380V AC, 460V AC
Nominal Efficiency
77 %
Motor Service Factor
1
Full Load Amps
6.0 A
Application
Condenser Fan
Motor Thermal Protection
Auto
Insulation Class
F
Frame Material
Steel
Nameplate Service Factor @ 60 Hz
1
Number of Speeds
1
Bearing Type
Ball
Drive Type
Direct Drive
Product Type
Condenser Fan Motor
Usable @ 208V
Not Usable at 208V
Nameplate Voltage @ 50 Hz
190/380V AC
Capacitor Required
Capacitor Not Required
Wattage
1120 W
Frequency
60/50 Hz
Shaft Design
Flat
Motor Enclosure Type
Open Air Over
Ambient Temperature - Maximum
70 Degrees C
Sub Application
Condenser Fan
Full Load Current @ 60 Hz
5.4/2.7 A, 6.0/3.0 A
Nameplate RPM @ 50 Hz
950 RPM

Description

Condenser Fan Motor, Three Phase, Motor Design Three-Phase, 1 1/2 hp HP, Nameplate RPM 1,140 RPM, No. of Speeds 1, Voltage 230/460V AC, 5.4/2.7 A, 6.0/3.0 A Full Load Amps, 56HZ Frame, Output Watts 1120 W, 60/50 Hz Hz, Usable @ 208V Not Usable at 208V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class F, Duty Cycle Continuous, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Lug, Motor Frame Material Steel
