Shop CENTURY

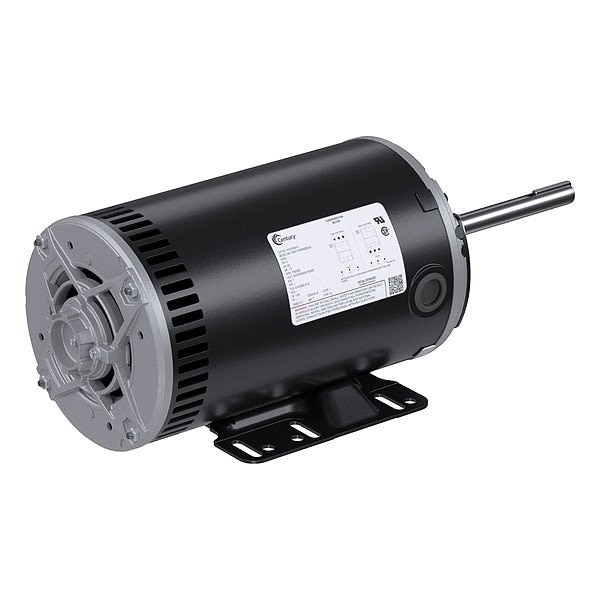

Condenser Fan Motor, 1 1/2 hp

  • Mfr # 056T11ORR40005A2

  • Zoro # G811931057

product price:  $949.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
HP
1 1/2
RPM Range
1,101-1,200
Nameplate RPM
1,140/940
Voltage
230/460; 190/380
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
056T11ORR40005A2
Zoro #
G811931057
UPC #
786674076168
Country of Origin
Mexico

Dimensions

Length Less Shaft
10 11/32 in
Shaft Dia.
5/8 in
Overall Length
16 11/32 in
Shaft Length
6 in
Frame Size
56HZ
Shaft Diameter
5/8 in
Body Diameter
6.6 in

Details

Item
Condenser Fan Motor
Motor Design
Three-Phase
HP
1 1/2
RPM Range
1,101-1,200
Nameplate RPM
1,140/940
Voltage
230/460; 190/380
Frame
56HZ
Motor Mounting Type
Rigid Base
Phase
Three
Motor Enclosure Design
Open Air-Over
No. of Speeds
1
Duty
Continuous
Max. Ambient Temp.
70 Degrees C
Features
Double Sealed Ball Bearings are Pre-Lubricated with a Special Formulation for Moisture Resistance and Provide Extra-Long Life
Application
Condenser Fan
Ins. Class
F
Hz
60 Hz
Motor Mounting Position
Vertical Shaft Up
Motor Service Factor
1
Motor Bearings
Ball
Motor Thermal Protection
Auto
Voltage Compatibility
190V AC, 230V AC, 380V AC, 460V AC
Motor Shaft Design
Keyed
Motor Application
HVAC/R
Motor Shaft Rotation
CW/CCW
Nominal Efficiency
77 %
Standards
CSA Certified, UL Listed
Full Load Amps
6.4 A
Bearing Type
Ball
Full Load Current @ 60 Hz
6.0/3.0 A, 6.4/3.2 A
Usable @ 208V
Not Usable at 208V
Number of Speeds
1
Insulation Class
F
Frame Material
Steel
Shaft Design
Keyed
Product Type
Condenser Fan Motor
Nameplate RPM @ 50 Hz
950 RPM
Motor Enclosure Type
Open Air Over
Wattage
1120 W
Ambient Temperature - Maximum
70 Degrees C
Nameplate Service Factor @ 60 Hz
1
Capacitor Required
Capacitor Not Required
Drive Type
Direct Drive
Frequency
60/50 Hz
Sub Application
Condenser Fan
Nameplate Voltage @ 50 Hz
190/380V AC

Description

Condenser Fan Motor, Three Phase, Motor Design Three-Phase, 1 1/2 hp HP, Nameplate RPM 1,140 RPM, No. of Speeds 1, Voltage 230/460V AC, 6.0/3.0 A, 6.4/3.2 A Full Load Amps, 56HZ Frame, Output Watts 1120 W, 60/50 Hz Hz, Usable @ 208V Not Usable at 208V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class F, Duty Cycle Continuous, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Rigid Base
