Shop CENTURY

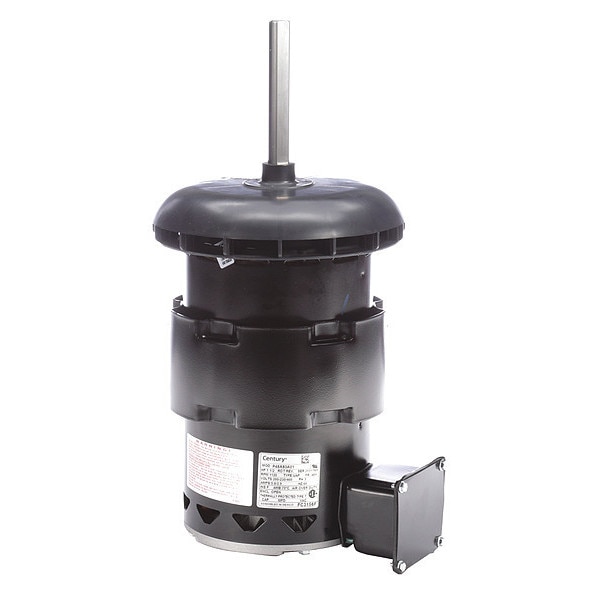

Condenser Fan Motor, 1-1/2HP, 1120rpm, 60Hz

  • Mfr # FC3156F

  • Zoro # G1414226

product price:  $799.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
RPM Range
1,101-1,200
No. of Speeds
1
Voltage
200-230/460V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FC3156F
Zoro #
G1414226
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Shaft Length
4 1/16 in
Overall Length
15 7/16 in
Body Dia.
5 5/8 in
Lead Length
5 in
Length Less Shaft
11 3/8 in
Shaft Diameter
5/8 in
Body Diameter
5.6 in
Frame Size
48Y

Details

Item
Condenser Fan Motor
Motor Design
Three-Phase
Phase
Three
HP
1 1/2
RPM Range
1,101-1,200
No. of Speeds
1
Voltage
200-230/460V AC
Motor Shaft Rotation
CW/CCW
Frame
48Y
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Band
Motor Mounting Position
Vertical Shaft Up
Motor Thermal Protection
Auto
Max. Ambient Temp.
70 Degrees C
Nameplate RPM
1,120
Motor Application
HVAC/R
Motor Sub Application
Condenser Fan
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 200-230V AC, 200V AC
Ins. Class
F
Hz
60 Hz
Motor Service Factor
1
Full Load Amps
5.8/2.9 A
Duty
Continuous
Motor Bearings
Ball
Features
Belly Band, Thermally Protected, Vertical Shaft Up
Motor Shaft Design
Keyed
Standards
CSA Certified, UL Recognized
Usable @ 208V
Usable at 208V
Conduit Box Location
Exterior
Output Watts
750 W
Weight
31 lb
Motor Frame Material
Steel
Removable Base
Yes
Usable @ 200V
Usable at 200V
Conduit Box Position
F1
Duty Cycle
Continuous
Mounting
Band
Frame Material
Steel
Includes
Rain Shield, Removable Base
Drive Type
Direct Drive
Motor Enclosure Type
Open Air Over
Insulation Class
F
Number of Speeds
1
Ambient Temperature - Maximum
70 Degrees C
Frequency
60 Hz
Sub Application
Condenser Fan
Bearing Type
Ball
Nameplate Service Factor @ 60 Hz
1
Product Type
Condenser Fan Motor
Full Load Current @ 60 Hz
5.8/2.9 A
Mounting Position
Vertical Shaft Up
Wattage
750 W
Shaft Design
Keyed
Capacitor Required
Capacitor Not Included
Efficiency Rating
Standard Efficiency (IE1)
Application
Condenser Fan

Description

Condenser Fan Motor, Three Phase, Motor Design Three-Phase, 1 1/2 hp HP, Nameplate RPM 1,120 RPM, No. of Speeds 1, Voltage 200-230/460V AC, 5.8/2.9 A Full Load Amps, 48Y Frame, Output Watts 750 W, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class F, Duty Cycle Continuous, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Belly Band
