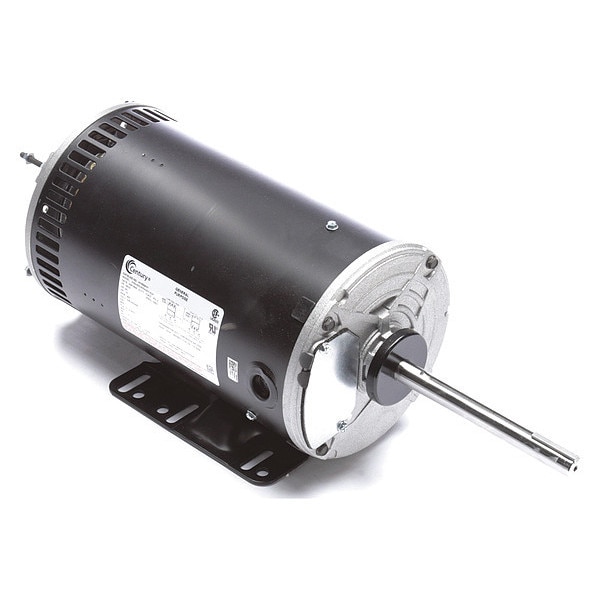

Condenser Fan Motor, 1 hp
Mfr # H1053AV1
Zoro # G3701393
product price:Â
$
483.99
/ea
Free Shipping & Returns
Key Features
Motor Design
Three-Phase
Phase
Three
HP
1
RPM Range
0-1,000
No. of Speeds
1
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- H1053AV1
- Zoro #
- G3701393
- UPC #
- -
- Country of Origin
- Mexico
Dimensions
- Shaft Dia.
- 5/8 in
- Shaft Length
- 6 in
- Stud Size
- #10-32
- Lead Length
- 6 in
- Overall Length
- 18 7/8 in
- Bolt Circle Dia.
- 5 15/16 in
- Length Less Shaft
- 12 7/8 in
- Manufacturers Warranty Length
- 1 yr
- Body Dia.
- 6 5/8 in
- Mounting Stud Length
- 1 in
- Body Diameter
- 6.6 in
- Shaft Diameter
- 5/8 in
- Frame Size
- 56HZ
- Mounting Stud Thread Size
- #10-32
- Bolt Circle Diameter
- 5 15/16 in
- Wire Rope Length
- 18 7/8 in
- Length
- 18 7/8 in
Description
Condenser Fan Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 850 RPM, No. of Speeds 1, Voltage 208-230/460V AC, 5.1-5.4/2.7 A Full Load Amps, 56HZ Frame, Output Watts 750 W, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class F, Duty Cycle Continuous, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Rigid Base
