Shop CENTURY

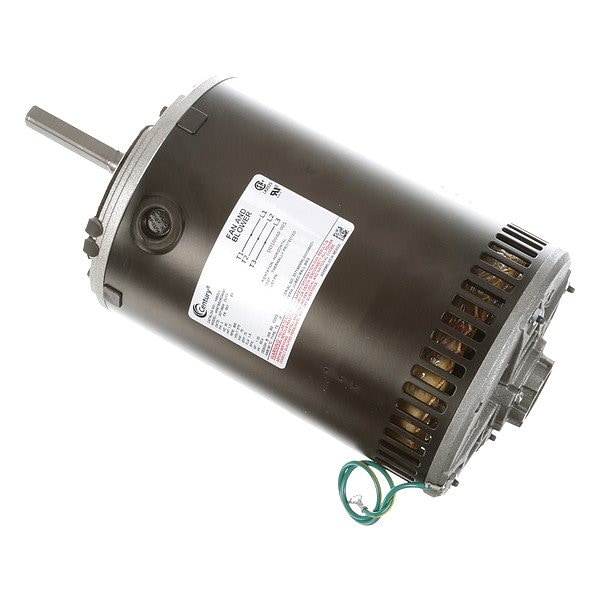

Condenser Fan Motor, 1 hp

  • Mfr # H962V1

  • Zoro # G811931132

product price:  $966.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
HP
1
RPM Range
0-1,000
Nameplate RPM
850
Voltage
575V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
H962V1
Zoro #
G811931132
UPC #
786674074935
Country of Origin
Mexico

Dimensions

Overall Length
14 5/16 in
Body Dia.
6 5/8 in
Shaft Length
2 15/32 in
Shaft Dia.
5/8 in
Length Less Shaft
11 27/32 in
Shaft Diameter
5/8 in
Body Diameter
6.6 in
Frame Size
56Z
Wire Rope Length
14 5/16 in

Details

Item
Condenser Fan Motor
Motor Design
Three-Phase
HP
1
RPM Range
0-1,000
Nameplate RPM
850
Voltage
575V AC
Frame
56Z
Phase
Three
Motor Enclosure Design
Open Air-Over
Features
Vertical/Horizontal Mounting for Proper Placement of the Fan within Airflow
Motor Mounting Position
Vertical Shaft Up
Voltage Compatibility
575V AC
Hz
60 Hz
Nominal Efficiency
70 %
Motor Application
HVAC/R
Full Load Amps
1.9 A
Ins. Class
B
Duty
Continuous
Motor Service Factor
1
No. of Speeds
1
Standards
CSA Certified, UL Listed
Motor Bearings
Ball
Application
Fan/Blower
Max. Ambient Temp.
60 Degrees C
Motor Shaft Design
Keyed
Motor Thermal Protection
Auto
Motor Shaft Rotation
CW/CCW
Number of Speeds
1
Full Load Current @ 60 Hz
1.9 A
Nameplate Service Factor @ 60 Hz
1
Insulation Class
B
Sub Application
Condenser Fan
Drive Type
Direct Drive
Frequency
60 Hz
Wattage
750 W
Product Type
Condenser Fan Motor
Capacitor Required
Capacitor Not Required
Bearing Type
Ball
Shaft Design
Keyed
Ambient Temperature - Maximum
60 Degrees C
Usable @ 208V
Not Usable at 208V
Frame Material
Steel
Motor Enclosure Type
Open Air Over

Description

Condenser Fan Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 850 RPM, No. of Speeds 1, Voltage 575V AC, 1.9 A Full Load Amps, 56Z Frame, Output Watts 750 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Belly Band, Motor Frame Material Steel
