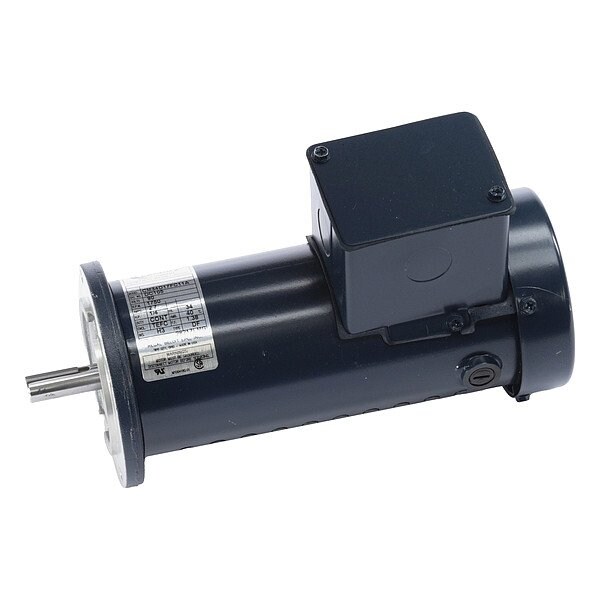

DC Permanent Magnet Motor, 34
Mfr # DC105
Zoro # G411929584
product price:Â
$
818.99
/ea
Free Shipping & Returns
Key Features
HP
1/4
Nameplate RPM
1,750 RPM
Shaft Dia.
1/2 in
Voltage
90V DC
Frame
34
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- DC105
- Zoro #
- G411929584
- UPC #
- 786674065117
- Country of Origin
- United States
Dimensions
- Shaft Dia.
- 1/2 in
- Stud Size
- 1/4"-20
- Length Less Shaft
- 8 5/8 in
- Overall Length
- 10 in
- Bolt Circle Dia.
- 3 3/4 in
- Shaft Length
- 1 3/8 in
- Bolt Circle Diameter
- 3 3/4 in
- Shaft Diameter
- 1/2 in
- Mounting Stud Thread Size
- 1/4"-20
- Wire Rope Length
- 10 in
- Frame Size
- 34
Description
DC Permanent Magnet Motor, Not Applicable Phase, Motor Design Permanent Magnet, 1/4 HP, Nameplate RPM 1,750 RPM, Voltage 90V DC, 2.7 A Full Load Amps, 34 Frame, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class H, Max. Ambient Temp. 104 Degrees F, Motor Shaft Rotation CW/CCW, Duty Cycle Continuous, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Face/Base, Shaft Dia. 1/2 in, Motor Frame Material Steel, Shaft Length 1 3/8 in, Motor Shaft Design Keyed
