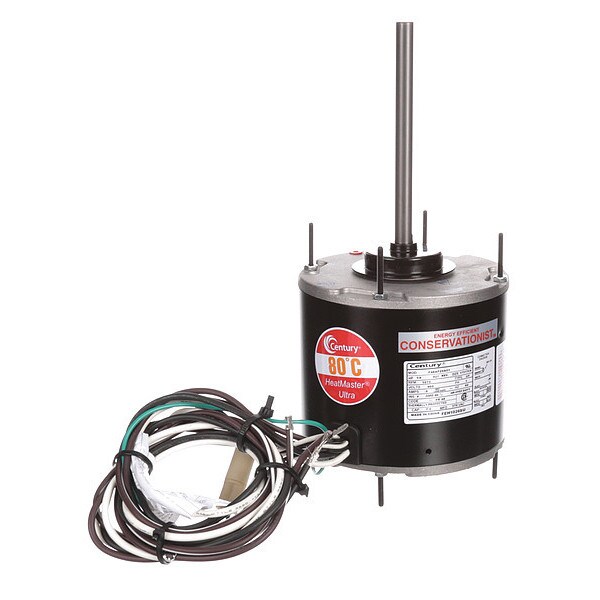

Condenser Fan Motor, 1/4 hp
Mfr # FEH1026SU
Zoro # G8795482
product price:Â $319.99
/ea
Free Shipping & Returns
Key Features
Motor Design
Permanent Split Capacitor
Phase
Single
RPM Range
1,001-1,100
No. of Speeds
1
Voltage
460V AC
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
FEH1026SU
Zoro #
G8795482
UPC #
-
Country of Origin
India
Dimensions
Bolt Circle Dia.
5 1/8 in
Body Dia.
5 5/8 in
Lead Length
48 in
Shaft Length
6 1/2 in
Length Less Shaft
5 5/8 in
Overall Length
12 1/8 in
Stud Size
#8-32
Shaft Dia.
1/2 in
Mounting Stud Length
1 1/8 in
Body Diameter
5.6 in
Bolt Circle Diameter
5 1/8 in
Mounting Stud Thread Size
#8-32
Frame Size
48
Shaft Diameter
1/2 in
Description
Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/4 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 1, Voltage 460V AC, 0.9 A Full Load Amps, 48 Frame, Output Watts 190 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class F, Max. Ambient Temp. 80 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud
