Shop CENTURY

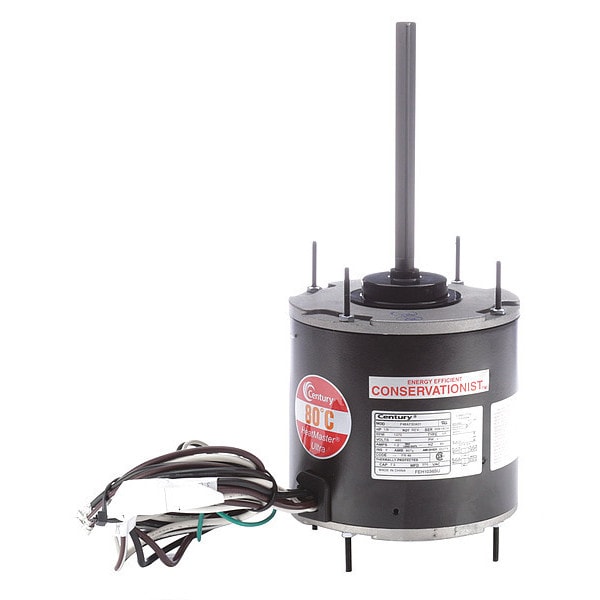

Condenser Fan Motor, 1/3 hp

  • Mfr # FEH1036SU
  • Zoro # G8795491
product price:
$
366.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Split Capacitor
Phase
Single
RPM Range
1,001-1,100
No. of Speeds
1
Voltage
460V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FEH1036SU
Zoro #
G8795491
UPC #
-
Country of Origin
India

Dimensions

Shaft Length
6 1/2 in
Body Dia.
5 5/8 in
Length Less Shaft
6 1/8 in
Shaft Dia.
1/2 in
Stud Size
#8-32
Lead Length
48 in
Overall Length
12 5/8 in
Bolt Circle Dia.
5 1/8 in
Mounting Stud Length
1 1/8 in
Shaft Diameter
1/2 in
Frame Size
48
Body Diameter
5.6 in
Bolt Circle Diameter
5 1/8 in
Mounting Stud Thread Size
#8-32
Wire Rope Length
12 5/8 in
Length
12 5/8 in

Details

Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/3
RPM Range
1,001-1,100
No. of Speeds
1
Voltage
460V AC
Motor Shaft Rotation
CW/CCW
Frame
48
Motor Enclosure Design
Totally Enclosed Air-Over
Motor Mounting Type
Stud
Motor Mounting Position
All Angle
Features
Extended Thru-Bolts
Ins. Class
F
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 220V AC to 230V AC, 460V AC, 220V AC, 460V AC, 230V AC, 460V AC, 796V AC, 230V AC, 460V AC, 440V AC to 460V AC, 460V AC, 796V AC, 460V AC
Nameplate RPM
1,075
Motor Sub Application
Condenser Fan
Full Load Amps
1.2 A
Motor Thermal Protection
Auto
Mounting Stud Pattern
5 5/32 in
Max. Ambient Temp.
80 Degrees C
Hz
60 Hz
Application
Condenser Fan
Standards
UL Recognized and CSA Certified
Motor Bearings
Ball
Duty
Continuous
Item
Condenser Fan Motor
Motor Shaft Design
Double-Flat
Motor Service Factor
1
Capacitor Required
Capacitor Not Included
Stud Quantity
4
Motor Application
HVAC/R
Removable Base
Yes
Usable @ 200V
Not Usable at 200V
Motor Frame Material
Steel
Includes
Belly Band, Removable Base
Weight
15 lb
Motor Flange Type
Non-Ventilated
Usable @ 208V
Not Usable at 208V
Output Watts
250 W
Mounting
Stud
Number of Speeds
1
Product Type
Condenser Fan Motor
Flange Type
Non-Ventilated
Ambient Temperature - Maximum
80 Degrees C
Full Load Current @ 60 Hz
1.2 A
Shaft Design
Double Flat
Wattage
250 W
Mounting Position
All Angle
Motor Enclosure Type
Totally Enclosed Air-Over
Efficiency Rating
Standard Efficiency (IE1)
Frame Material
Steel
Bearing Type
Ball
Drive Type
Direct Drive
Sub Application
Condenser Fan
Nameplate Service Factor @ 60 Hz
1
Frequency
60 Hz
Insulation Class
F

Description

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/3 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 1, Voltage 460V AC, 1.2 A Full Load Amps, 48 Frame, Output Watts 250 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class F, Max. Ambient Temp. 80 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud
