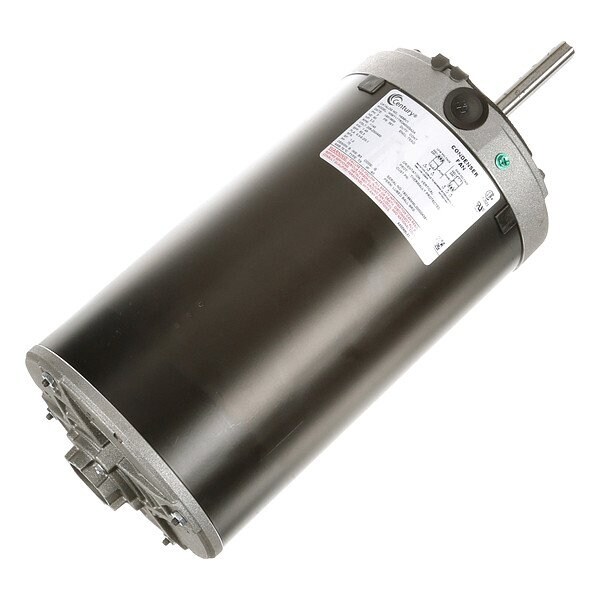

Direct Drive Blower Motor, 2 hp

  • Mfr # H698V1

  • Zoro # G011931154

product price:  $753.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
HP
2
RPM Range
1,101-1,200
Nameplate RPM
1,140
Voltage
230/460V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
H698V1
Zoro #
G011931154
UPC #
786674074928
Country of Origin
Mexico

Dimensions

Overall Length
16 11/16 in
Shaft Length
3 7/16 in
Body Dia.
6 1/2 in
Shaft Dia.
5/8 in
Length Less Shaft
13 1/4 in
Body Diameter
6.5 in
Shaft Diameter
5/8 in
Frame Size
56Y
Wire Rope Length
16 11/16 in

Details

Item
Direct Drive Blower Motor
Motor Design
Three-Phase
HP
2
RPM Range
1,101-1,200
Nameplate RPM
1,140
Voltage
230/460V AC
Frame
56Y
Phase
Three
Motor Enclosure Design
Totally Enclosed Air-Over
Standards
CSA Certified, UL Listed
Motor Shaft Design
Keyed
Motor Thermal Protection
Auto
Duty
Continuous
Nominal Efficiency
82.5 %
Motor Bearings
Ball
Ins. Class
B
Motor Mounting Position
Vertical/Horizontal
Motor Service Factor
1
Motor Application
Blower; Fan
Hz
60 Hz
Full Load Amps
6.2/3.1 A
Max. Ambient Temp.
70 Degrees C
Voltage Compatibility
230V AC, 460V AC
No. of Speeds
1
Motor Shaft Rotation
CW/CCW
Shaft Design
Keyed
Product Type
Fan and Blower Motor
Nameplate Service Factor @ 60 Hz
1
Capacitor Required
Capacitor Not Required
Full Load Current @ 60 Hz
6.2/3.1 A
Usable @ 208V
Not Usable at 208V
Bearing Type
Ball
Application
Fan/Blower
Weight
46 lb
Frequency
60 Hz
Ambient Temperature - Maximum
70 Degrees C
Insulation Class
B
Drive Type
Direct Drive
Mounting Position
All Angle
Sub Application
Condenser Fan
Wattage
1.5 kW
Frame Material
Steel
Number of Speeds
1
Motor Enclosure Type
Totally Enclosed Air-Over

Description

Direct Drive Blower Motor, Three Phase, Motor Design Three-Phase, 2 hp HP, Nameplate RPM 1,140 RPM, No. of Speeds 1, Voltage 230/460V AC, 6.2/3.1 A Full Load Amps, 56Y Frame, Output Watts 1.5 kW, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Belly Band
