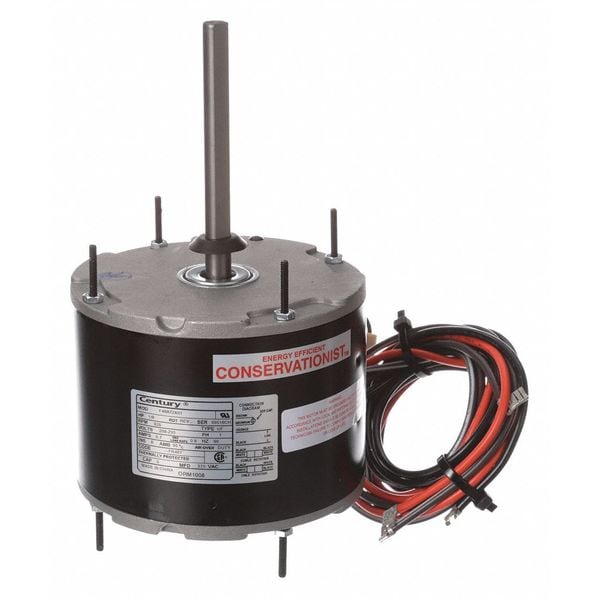

Condenser Fan Motor, 1/8 hp
Mfr # ORM1008
Zoro # G2200055
product price:Â
$
209.99
/ea
Free Shipping & Returns
Key Features
Frame
48Y
HP
1/8 HP
Motor Application
OEM Replacement
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Totally Enclosed
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- ORM1008
- Zoro #
- G2200055
- UPC #
- -
- Country of Origin
- India
Dimensions
- Shaft Dia.
- 1/2"
- Shaft Length
- 4 13/16 in
- Length Less Shaft
- 5 1/16 in
- Bolt Circle Dia.
- 5-3/16"
- Body Dia.
- 5.7"
- Manufacturers Warranty Length
- 1 yr
- Overall Length
- 9"
- Stud Size
- #8-32
- Frame Size
- 48Y
- Bolt Circle Diameter
- 5 1/8 in
- Mounting Stud Thread Size
- #8-32
- Body Diameter
- 5.7 in
- Wire Rope Length
- 9 7/8 in
- Shaft Diameter
- 1/2 in
- Length
- 9 7/8 in
Description
Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/8 hp HP, Nameplate RPM 825 RPM, No. of Speeds 1, Voltage 208-230V AC, Full Load Amps 0.7 A, 48Y Frame, OEM Replacement Brand Rheem/Ruud, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 50 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud
