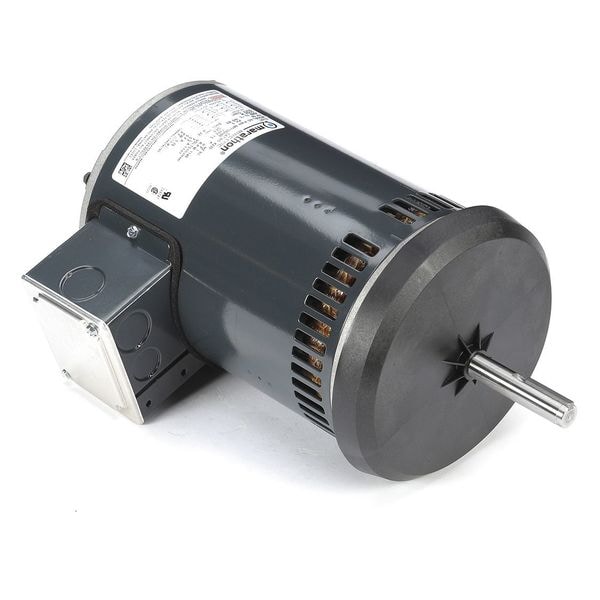

Motor, 1 HP, OEM Replacement Brand: Carrier, Marathon Replacement For: 56T11D33, HD52VE214

  • Mfr # 056T11D5209

  • Zoro # G6086132

product price:  $571.99
/ea
Free Shipping & Returns

Key Features

Frame
56
HP
1 HP
Motor Application
OEM Replacement
Motor Design
Squirrel Cage Induction Run
Motor Enclosure Design
Drip Proof Air Over
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
056T11D5209
Zoro #
G6086132
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8"
Shaft Length
1.88"
Length Less Shaft
12 7/8 in
Body Dia.
7-1/16"
Manufacturers Warranty Length
1 yr
Overall Length
14.8"
Stud Size
#10-32
Mounting Stud Thread Size
#10-32
Body Diameter
7.1 in
Frame Size
56
Shaft Diameter
5/8 in
Wire Rope Length
14 13/16 in

Details

Frame
56
HP
1 HP
Item
Motor
Motor Application
OEM Replacement
Motor Design
Squirrel Cage Induction Run
Motor Enclosure Design
Drip Proof Air Over
Motor Mounting Type
Round Belly Band
Motor Shaft Rotation
Reversible
Motor Sub Application
Direct Drive Fan/Blower
Motor Thermal Protection
Automatic
Nameplate RPM
1140 rpm
No. of Speeds
1
Number of Shafts
1
OEM Replacement Brand
Carrier, Marathon
Phase
3
RPM Range
0-1000
Voltage
200-230/460V
Motor Bearings
Ball
Replacement For
56T11D33, HD52VE214
Ins. Class
B
Max. Ambient Temp.
40 Degrees C
Duty
Continuous
Full Load Amps
6.6-6.0/3.0A
Capacitor Required
No
Standards
UL Recognized (E6312), CSA Certified (LR2025)
Motor Shaft Design
T
Hz
60 Hz
Motor Service Factor
1.00
Application
Fans and Blowers
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 200-230V AC, 200V AC, 208-230/460V AC, 208V AC, 220/460V AC, 230/460V AC, 230V AC, 240V AC, 460V AC
Conduit Box Location
Exterior
Conduit Box Position
F1
Motor Mounting Position
Horizontal
Weight
36 lb
Usable @ 208V
Usable at 208V
Motor Frame Material
Steel
Duty Cycle
Continuous
Usable @ 200V
Usable at 200V
Rotation
CW/CCW
Mounting
Band
Number of Speeds
1
Nameplate Service Factor @ 60 Hz
1
Motor Enclosure Type
Open Air Over
Insulation Class
B
Mounting Position
Horizontal
Frame Material
Steel
Ambient Temperature - Maximum
70 Degrees C
Full Load Current @ 60 Hz
6.6-6.0/3.0 A
Compatible Brand
Leeson
Bearing Type
Ball
Sub Application
Fan/Blower

Description

Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 1,140 RPM, No. of Speeds 1, Voltage 200-230/460V AC, Full Load Amps 6.6-6.0/3.0 A, 56 Frame, OEM Replacement Brand Carrier, Marathon, Replacement For 56T11D33, HD52VE214, Usable @ 208V Usable at 208V, Usable @ 200V Usable at 200V, 60 Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 70 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over
