  9. Condenser Fan Motor, 3/4 hp
No Product Image Available

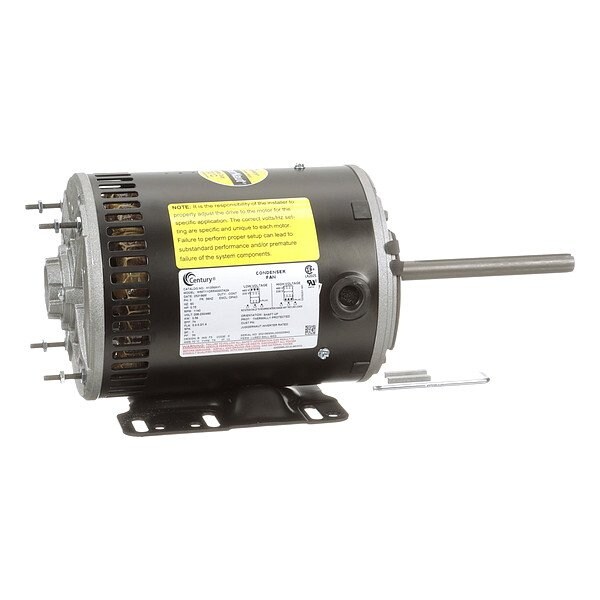

Condenser Fan Motor, 3/4 hp

  • Mfr # 056T11ORR40007A2

  • Zoro # G911931087

product price: $746.99
/ea
Free Shipping & Returns

Key Features

Motor Design
3-Phase
HP
3/4
RPM Range
1,101-1,200
Nameplate RPM
1,140
Voltage
230/460V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
056T11ORR40007A2
Zoro #
G911931087
UPC #
786674076106
Country of Origin
Mexico

Dimensions

Body Dia.
6 5/8 in
Shaft Length
6 in
Overall Length
15 7/8 in
Length Less Shaft
9 7/8 in
Shaft Dia.
5/8 in

Details

Item
Condenser Fan Motor
Motor Design
3-Phase
HP
3/4
RPM Range
1,101-1,200
Nameplate RPM
1,140
Voltage
230/460V AC
Frame
56HZ
Motor Mounting Type
Lug
Phase
Three
Motor Enclosure Design
Open Air-Over
Duty
Continuous
Nominal Efficiency
74 %
Standards
CSA Certified, UL Listed
Motor Service Factor
1
Full Load Amps
3.2/1.6 A
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Ins. Class
F
Motor Thermal Protection
Auto
Motor Bearings
Ball
Motor Mounting Position
Vertical Shaft Up
No. of Speeds
1
Voltage Compatibility
230V AC, 460V AC
Motor Application
HVAC/R
Features
Double Sealed Ball Bearings are Pre-Lubricated with a Special Formulation for Moisture Resistance and Provide Extra-Long Life
Max. Ambient Temp.
70 Degrees C
Application
Condenser Fan
Hz
60 Hz

Description

Condenser Fan Motor, Three Phase, Motor Design Three-Phase, 3/4 hp HP, Nameplate RPM 1,140 RPM, No. of Speeds 1, Voltage 230/460V AC, 3.2/1.6 A Full Load Amps, 56HZ Frame, Output Watts 560 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class F, Duty Cycle Continuous, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Lug, Motor Frame Material Steel
