Shop CENTURY

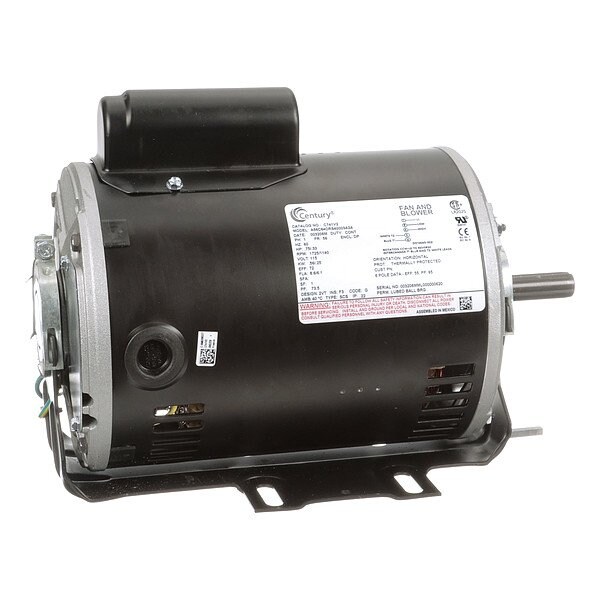

Direct Drive Blower Motor

  • Mfr # C741V2
  • Zoro # G011931116
product price:
$
1,040.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Capacitor-Start
HP
1/3, 3/4
RPM Range
1,701-1,800
Nameplate RPM
1,725/1,140
Voltage
115V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
C741V2
Zoro #
G011931116
UPC #
786674075246
Country of Origin
Mexico
Item
Direct Drive Blower Motor
Motor Design
Capacitor-Start
HP
1/3, 3/4
RPM Range
1,701-1,800
Nameplate RPM
1,725/1,140
Voltage
115V AC
Frame
56
Motor Mounting Type
Resilient Base
Phase
Single
Motor Enclosure Design
Open Dripproof
Motor Shaft Rotation
CW/CCW
Hz
60 Hz
No. of Speeds
2
Duty
Continuous
Ins. Class
F
Standards
CE, CSA Certified, UL Listed
Motor Shaft Design
Keyed
Full Load Amps
8.58 A
Nominal Efficiency
72 %
Capacitor Required
Capacitor Included
Motor Bearings
Ball
Voltage Compatibility
115V AC
Max. Ambient Temp.
40 Degrees C
Motor Service Factor
1
Motor Thermal Protection
Auto
Motor Application
Blower; Fan
Drive Type
Belt Drive
Shaft Design
Keyed
Bearing Type
Ball
Nameplate Service Factor @ 60 Hz
1
Ambient Temperature - Maximum
40 Degrees C
Number of Speeds
2
Usable @ 208V
Not Usable at 208V
Weight
34 lb
Sub Application
General Purpose
Application
Fan/Blower
Frame Material
Steel
Full Load Current @ 60 Hz
8.6 A
Insulation Class
F
Frequency
60 Hz
Product Type
Fan and Blower Motor
Wattage
560 W
Motor Enclosure Type
Open Drip Proof

Description

Direct Drive Blower Motor, Single Phase, Motor Design Capacitor-Start, 1/3 hp, 3/4 hp HP, Nameplate RPM 1,725/1,140 RPM, No. of Speeds 2, Voltage 115V AC, 8.6 A Full Load Amps, 56 Frame, Output Watts 560 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class F, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Cradle Base
