Shop CENTURY

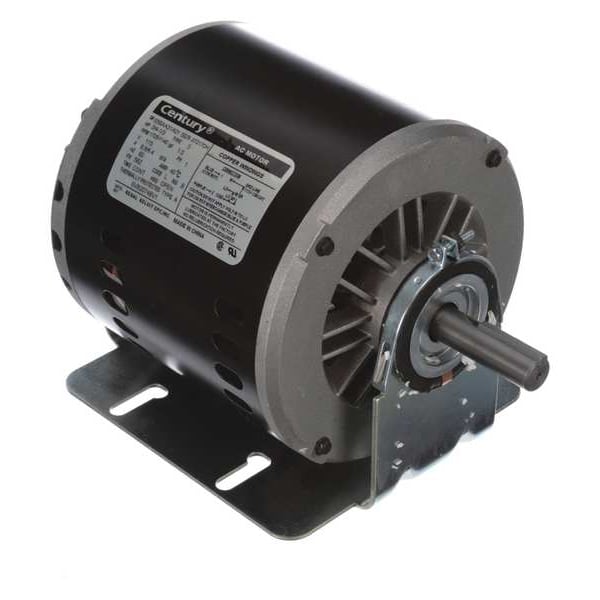

Evaporative Cooler Motor, 1/3 hp; 3/4 hp

  • Mfr # SVB2074BV2

  • Zoro # G2626976

product price:
$
368.99
/ea
Free Shipping & Returns

Key Features

Voltage
115V AC
Motor Enclosure Design
Open Dripproof
RPM Range
1,701-1,800
HP
1/3, 3/4
Full Load Amps
9.8/6.4 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SVB2074BV2
Zoro #
G2626976
UPC #
-
Country of Origin
China

Dimensions

Overall Length
9 13/16 in
Shaft Dia.
5/8 in
Ring Dia.
2 1/2 in
Resilient Ring Dia.
2 1/2 in
Length Less Shaft
7 15/16 in
Shaft Length
1 7/8 in
Shaft Diameter
5/8 in
Body Diameter
6.4 in
Frame Size
56
Resilient Ring Diameter
2 1/2 in
Wire Rope Length
9 13/16 in
Length
9 13/16 in

Details

Item
Evaporative Cooler Motor
Voltage
115V AC
Motor Enclosure Design
Open Dripproof
RPM Range
1,701-1,800
HP
1/3, 3/4
Full Load Amps
9.8/6.4 A
Phase
Single
Motor Thermal Protection
Auto
Motor Design
Split-Phase
Hz
60 Hz
No. of Speeds
2
Frame
56
Motor Application
HVAC/R
Nameplate RPM
1,725/1,140
Max. Ambient Temp.
40 Degrees C
Motor Shaft Rotation
CW/CCW
Motor Service Factor
1
Ins. Class
B
Ambient Temperature
40 Degrees C
Motor Bearings
Ball
Motor Sub Application
Evaporator Cooler
Motor Mounting Type
Cradle Base
Ring to Ring Center
7 7/16 in
Standards
CSA, UL
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Features
Moisture Resistant
Usable @ 208V
Not Usable at 208V
Motor Mounting Position
All Angle
Usable @ 200V
Not Usable at 200V
Finish
Varnish
Includes
Hardware, Switch Parts
Number of Speeds
2
Wattage
560 W
Frame Material
Steel
Frequency
60 Hz
Drive Type
Direct Drive
Efficiency Rating
Standard Efficiency (IE1)
Capacitor Required
Capacitor Not Required
Full Load Current @ 60 Hz
9.8/6.4 A
Application
Evaporative Cooler
Nameplate Service Factor @ 60 Hz
1
Product Type
Evaporative Cooler Motor
Motor Enclosure Type
Open Drip Proof
Sub Application
Evaporative Cooler
Ambient Temperature - Maximum
40 Degrees C
Insulation Class
B

Description

Evaporative Cooler Motor, Single Phase, Motor Design Split-Phase, 1/3 hp, 3/4 hp HP, Nameplate RPM 1,725/1,140 RPM, No. of Speeds 2, Voltage 115V AC, 9.8/6.4 A Full Load Amps, 56 Frame, Output Watts 560 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Cradle Base
