Shop CENTURY

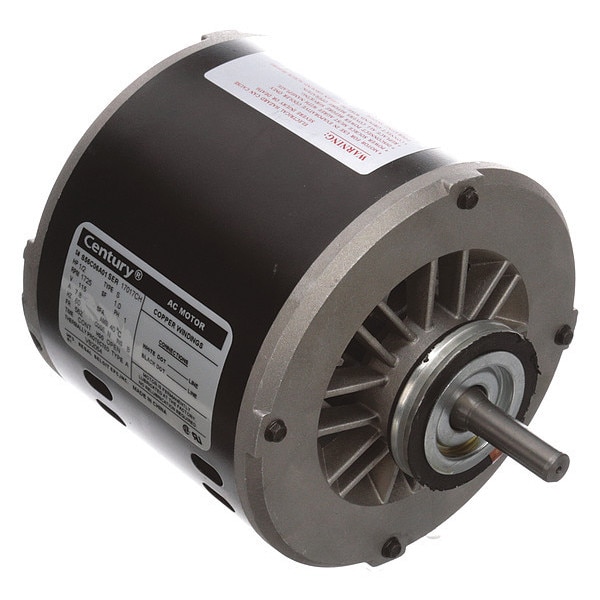

Evaporative Cooler Motor, 1/2 hp

  • Mfr # VB2054V1

  • Zoro # G2659632

product price:
$
201.99
/ea
Free Shipping & Returns

Key Features

Voltage
115V AC
Motor Enclosure Design
Open Dripproof
RPM Range
1,701-1,800
HP
1/2
Full Load Amps
7.8 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
VB2054V1
Zoro #
G2659632
UPC #
-
Country of Origin
China
Item
Evaporative Cooler Motor
Voltage
115V AC
Motor Enclosure Design
Open Dripproof
RPM Range
1,701-1,800
HP
1/2
Full Load Amps
7.8 A
Phase
Single
Motor Thermal Protection
Auto
Motor Design
Split-Phase
Hz
60 Hz
No. of Speeds
1
Frame
56Z
Motor Application
HVAC/R
Nameplate RPM
1,725
Max. Ambient Temp.
40 Degrees C
Motor Shaft Rotation
CW/CCW
Motor Service Factor
1
Ins. Class
B
Ambient Temperature
40 Degrees C
Motor Bearings
Ball
Motor Sub Application
Evaporator Cooler
Motor Mounting Type
Ring
Ring to Ring Center
7 7/16 in
Standards
CSA, UL
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Usable @ 200V
Not Usable at 200V
Features
Moisture Resistant
Finish
Varnish
Includes
Hardware, Switch Parts
Usable @ 208V
Not Usable at 208V
Motor Mounting Position
All Angle
Number of Speeds
1
Capacitor Required
Capacitor Not Required
Nameplate Service Factor @ 60 Hz
1
Drive Type
Direct Drive
Product Type
Evaporative Cooler Motor
Wattage
370 W
Application
Evaporative Cooler
Insulation Class
B
Frequency
60 Hz
Motor Enclosure Type
Open Drip Proof
Frame Material
Steel
Sub Application
Evaporative Cooler
Ambient Temperature - Maximum
40 Degrees C
Efficiency Rating
Standard Efficiency (IE1)
Full Load Current @ 60 Hz
7.8 A

Description

Evaporative Cooler Motor, Single Phase, Motor Design Split-Phase, 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115V AC, 7.8 A Full Load Amps, 56Z Frame, Output Watts 370 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Resilient Ring, Motor Frame Material Steel
