Shop CENTURY

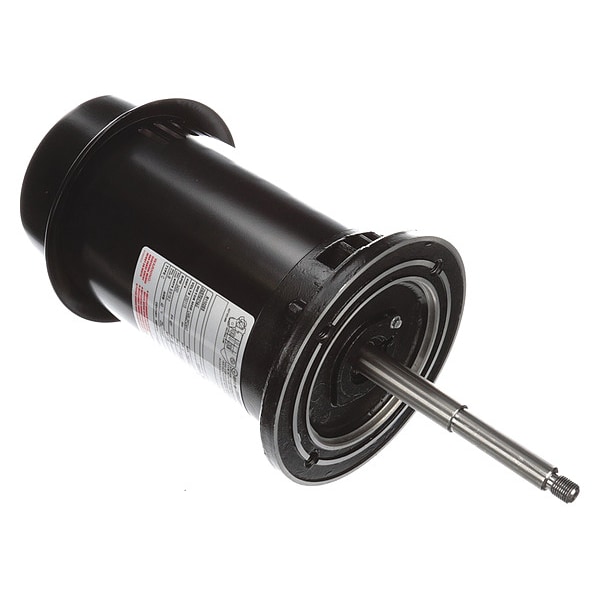

General Purpose Pump Motor, Capacitor-Start, 1 HP, 48Y Frame, 3,450 Nameplate RPM

  • Mfr # R1102ES
  • Zoro # G0792316
product price:
$
402.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Capacitor-Start
Motor Enclosure Design
Open Dripproof
HP
1
RPM Range
3,001-3,600
Motor Service Factor
1.65
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
R1102ES
Zoro #
G0792316
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
3/4 in
Shaft Length
5 7/8 in
Overall Length
17 in
Body Dia.
5.9 in
Height
5 5/8 in
Length Less Shaft
11 3/16 in
Manufacturers Warranty Length
1 yr
Shaft Diameter
3/4 in
Frame Size
48Y
Body Diameter
5.9 in
Wire Rope Length
17 in
Length
17 in

Details

Item
Replacement Pump Motor
Motor Design
Capacitor-Start
Motor Enclosure Design
Open Dripproof
HP
1
RPM Range
3,001-3,600
Motor Service Factor
1.65
Nameplate RPM
3,450
Frame
48Y
Motor Shaft Rotation
CCW
Voltage
230/115V AC
Phase
Single
Full Load Amps
9.6/19.2 A
Motor Mounting Type
Round Base
Max. Ambient Temp.
40 Degrees C
Voltage Compatibility
230V AC, 115V AC
Finish
Powder Coated
Ins. Class
B
Motor Bearings
Ball
Standards
CSA, UL
Motor Application
Pump
Motor Thermal Protection
Auto
Hz
60 Hz
Shaft Material
303 Stainless Steel
No. of Speeds
1
Motor Frame Material
Rolled Steel
Duty Cycle
Continuous
Weight
26 lb
Motor Shaft Design
Threaded
Part Winding Start Capable
No
Motor Mounting Position
Horizontal
Max. SF Amps
1.65
Inverter Rated
Not Inverter Rated
Usable @ 208V
Usable at 208V
Number of Wires
9
Number of Speeds
1
Shaft Design
Threaded
Service Factor Current
1.65 A
Application
Pump
Manufacturers Warranty
1 yr
Frame Finish
Powder-Coated
Efficiency Rating
Standard Efficiency (IE1)
Product Type
Pump Motor
Frame Material
Steel
Insulation Class
B
Mounting Position
Horizontal
Ambient Temperature - Maximum
40 Degrees C
Nameplate Service Factor @ 60 Hz
1.65
Bearing Type
Ball
Frequency
60 Hz
Full Load Current @ 60 Hz
9.6/19.2 A
Motor Enclosure Type
Open Drip Proof

Description

Replacement Pump Motor, Body Dia. 5.9 in, Duty Cycle Continuous, Finish Powder Coated, Frame 48Y, Hz 60, Full Load Amps 9.6/19.2 A, Height 5 5/8 in, HP 1, Ins. Class B, Inverter Rated Not Inverter Rated, Inverter Rating Not Applicable, Length Less Shaft 11 3/16 in, Manufacturers Warranty Length 1 yr, Max. Ambient Temp. 40 Degrees C, Max. SF Amps 1.65, Motor Application Pump, Motor Bearings Ball, Motor Design Capacitor-Start, Motor Enclosure Design Open Dripproof
